Utility Loss Control Example (Generator Start/Stop)

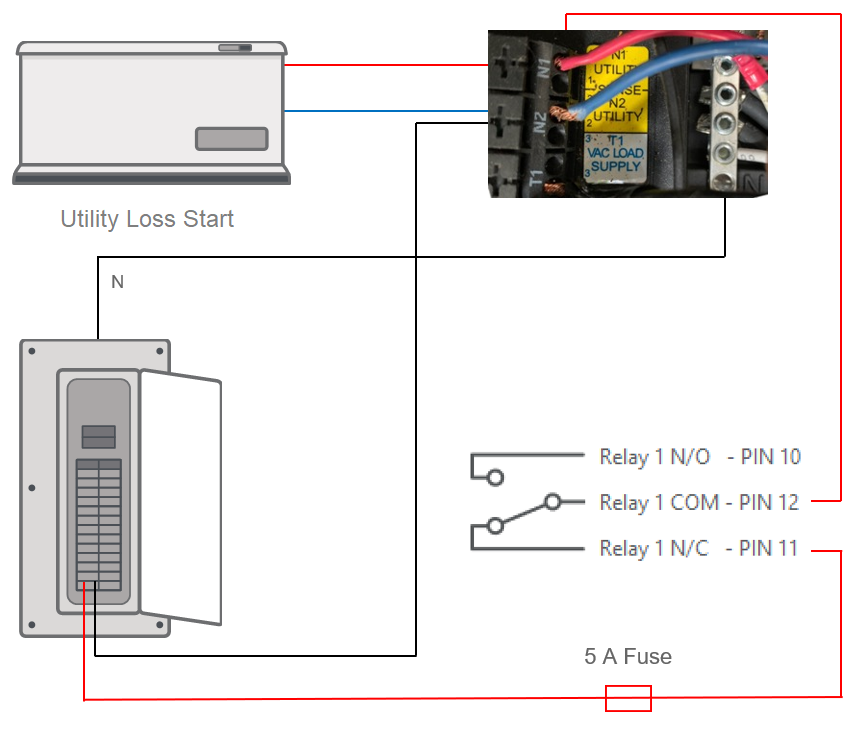

Utility loss generator powers the terminals of the inverter.

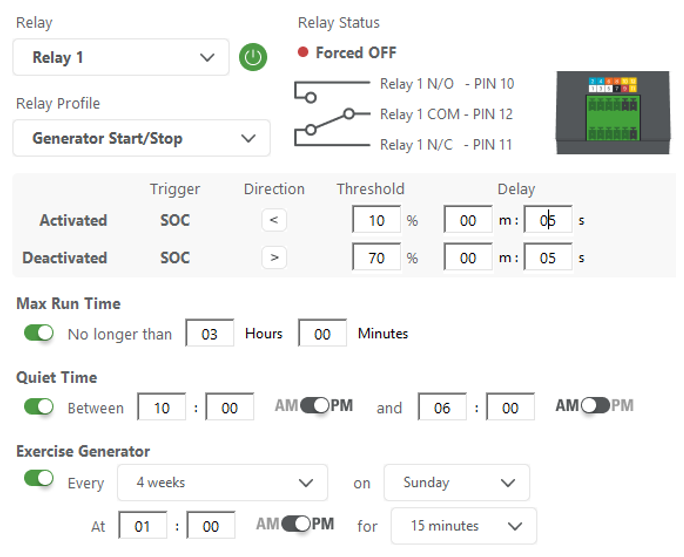

Activated: 5 seconds after the battery’s SOC drops below 10%
Deactivated: 5 seconds after the battery SOC rises above 70%
 LYNK ACCESS
|
|
When there is a power failure, the grid goes offline and the batteries are used to power loads and the utility loss terminals on the generator.
When the battery SOC drops below 10%, after a 5-second delay, pin 10 is closed (activated) and starts the generator to recharge the batteries. Once the battery SOC is greater than 70%, after a 5-second pause, pin 10 is opened (deactivated), and the generator is turned off.
