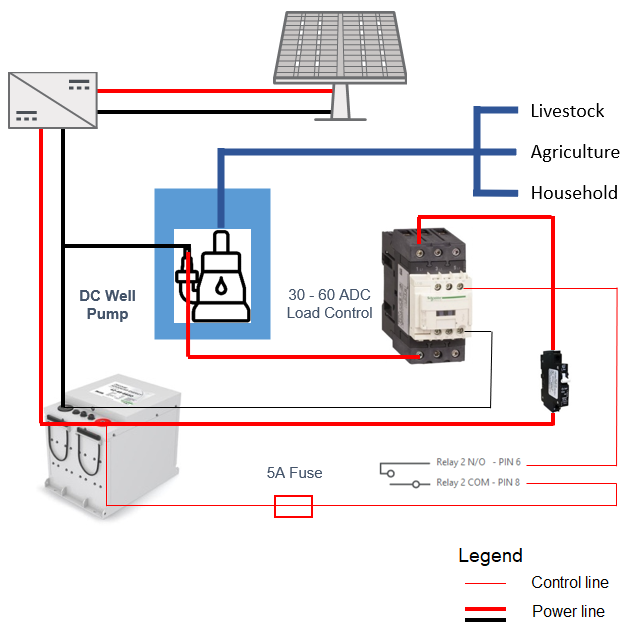

The following example shows a well pump that is powered by a battery and uses the LYNK II relay to protect the battery from over-discharging.

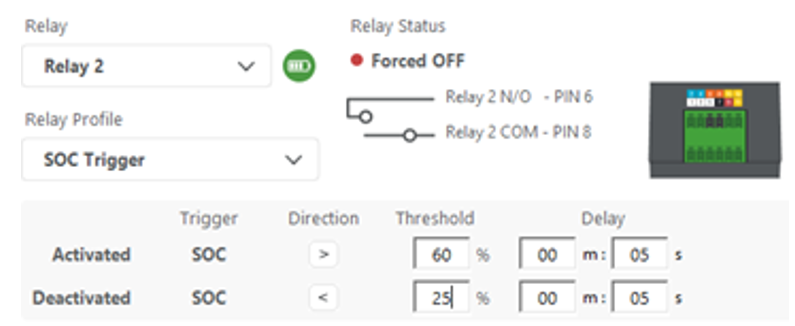

Activated: 5 seconds after the battery SOC rises above 60%
Deactivated: 5 seconds after the battery SOC drops below 25%
|
|
|
5 seconds after the battery SOC rises above 60%, the battery powers the well pump. 5 seconds after the battery SOC drops below 25%, the battery stops powering the pump.
Solar panels recharge the battery.
