Closed-Loop - Batt Setup > Batt

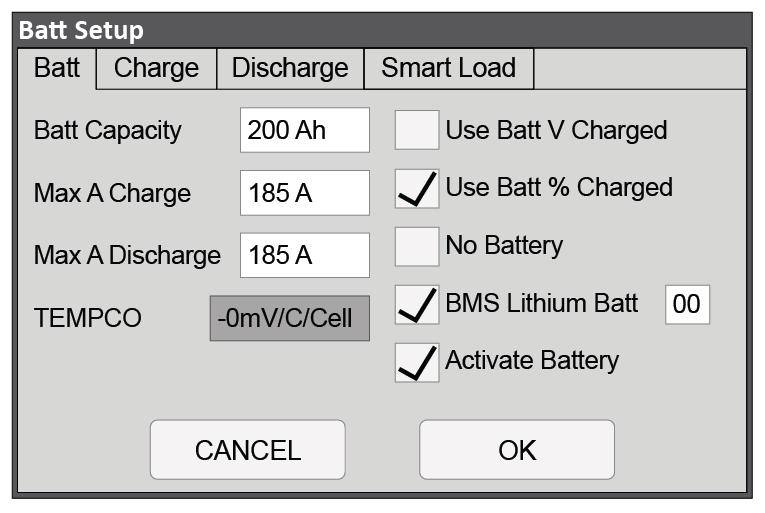

Touch the BATT tab onscreen to start the programming sequence (see image below).
Touch the OK button to save all onscreen values - Ignore data displayed in GREY boxes.
Closed-Loop Battery Setup > Battery (Two 130Ah AES Batteries with 12K-P)
Batt Setup > Batt |
|
|---|---|
Batt Capacity | Set to the number of Discover Lithium batteries x Ah capacity of each. (For example, set to 200 Ah for two AES RACKMOUNT batteries, each rated at 100 Ah capacity). |
Max A Charge | For a single inverter: set to the lesser of the inverter’s max charge capacity, or the quantity of attached batteries, multiplied by the battery model’s specific max charge rating. For example, a 12K-P inverter would be set to the lessor of the inverter’s max charge rate of 185 A, or 190 A for two AES RACKMOUNT 48-48-5120 batteries rated at 95 A max charge each. (2) For a three-phase system: set to the lessor of the max charge value for the master inverter, or the quantity of attached batteries multiplied by the battery model’s max charge rating, divided by the number of inverters. For example, the master 12K-P would be set to the lessor of the inverter’s max charge rate of 185A, or 126 A, for a battery bank of four AES RACKMOUNT 48-48-5120 batteries rated at 95 A max charge each (380 A divided by three inverters). |
Max A Discharge | For a single inverter: set to the lesser of the inverter’s max discharge capacity, or the quantity of attached batteries, multiplied by the battery model’s specific max discharge rating. For example, a 12K-P inverter would be set to the lessor of the inverter’s max discharge rate of 185 A, or 190 A for two AES RACKMOUNT 48-48-5120 batteries rated at 95 A max discharge each. (1) For a three-phase system: set to the lessor of the max discharge value for the master inverter, or the quantity of attached batteries multiplied by the battery model’s max discharge rating, divided by the number of inverters. For example, the master 12K-P would be set to the lessor of the inverter’s max discharge rate of 185 A, or 126 A, for a battery bank of four AES RACKMOUNT 48-48-5120 batteries rated at 95 A max discharge each (380 A divided by three inverters). |
TEMPCO | This value is disabled (grey) when BMS Lithium Batt is enabled. |
Use Batt V Charged | Disable |
Use Batt % Charged | Enable |
No Battery | Disable |
BMS Lithium Batt | Enable and set to 00 (2) |
Activate Battery | Enable |
(1) The recommended value for Max A Charge is 75% of the rated maximum charge current for the battery. (2) Setting the BMS Lithium Batt parameter to Enable confirms closed-loop operation. Ensure that a checkmark and 00 (CANBus Battery mode) is displayed. The values and parameters used are for an operating temperature of 25 °C (77 °F). | |
