INTRODUCTION

This document describes how to connect the HELIOS ESS, a rechargeable Li-ion battery from Discover Energy Systems (Discover), in a battery bank configuration where multiple batteries are connected in parallel.

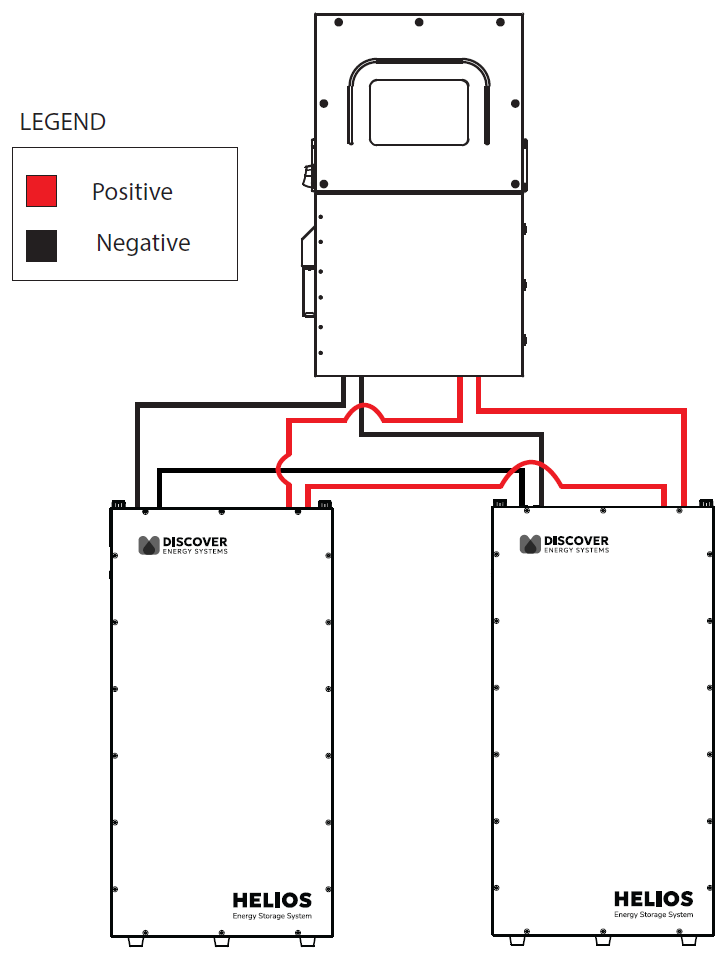

Paralleling Two Batteries

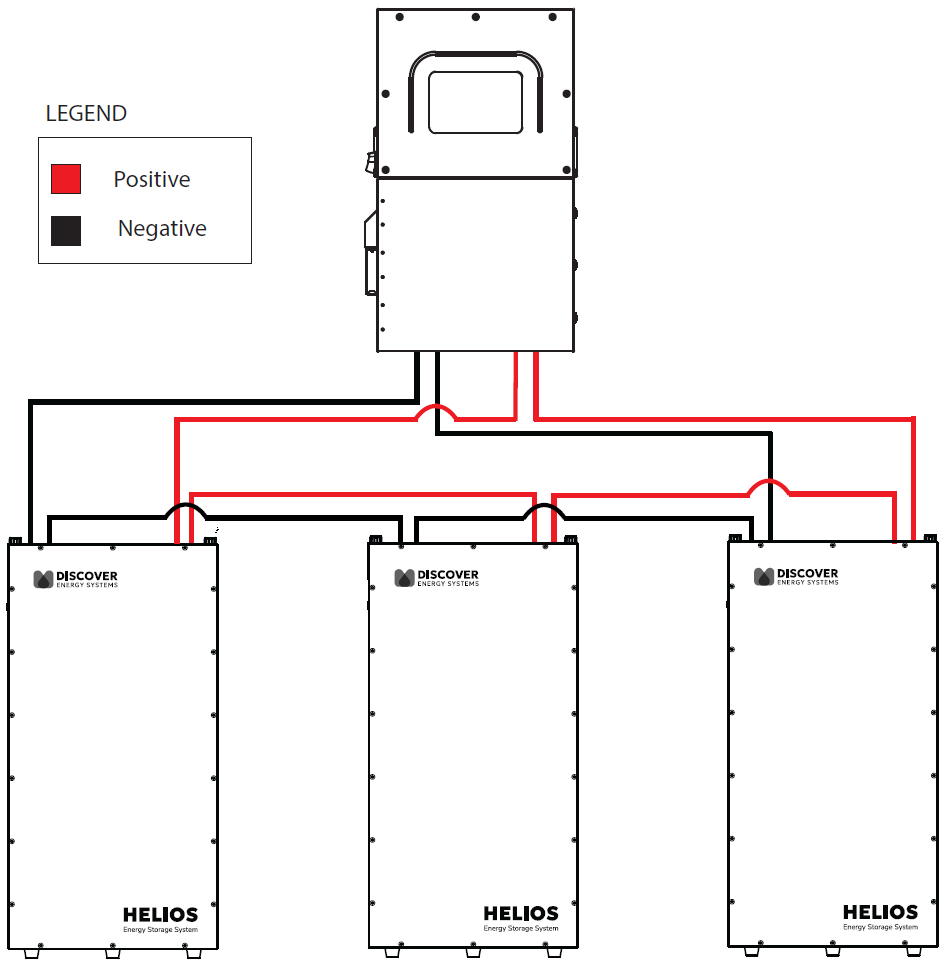

Paralleling Three Batteries

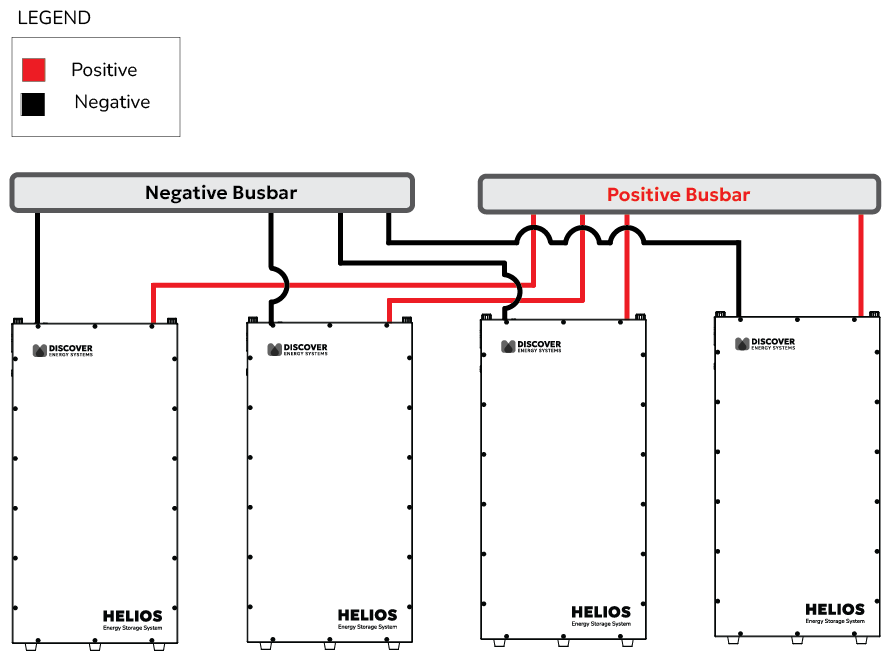

Paralleling More Than Three Batteries

The following accessories are available for connecting the HELIOS ESS batteries in parallel.

Accessory

Part Number

HELIOS ESS Battery to Inverter Power Cables

  • 2 pairs of 200 A cables with quick connects:

    • 2/0 AWG Positive Battery Cable (1.0 m, 39.37 in)

    • 2/0 AWG Negative Battery Cable (1.0 m, 39.37 in)

  • 2 pairs of 170 A cables with quick connects:

    • 1/0 AWG Positive Battery Cable (1.0 m, 39.37 in)

    • 1/0 AWG Negative Battery Cable (1.0 m, 39.37 in)



950-0070





950-0071

HELIOS ESS Parallel Wire Kit (battery to battery)

  • 1 pair of 200 A cables with quick connects:

    • 2/0 AWG Positive Battery Cable (1.35 m, 53 in)

    • 2/0 AWG Negative Battery Cable (1.35 m, 53 in)

  • CAT6 Cable (135 cm, 53 inch) (COM3/COM4)

950-0068

HELIOS ESS Terminal Connector Set

950-0072
