Terminal Connections and Hardware


ELECTRIC SHOCK AND FIRE HAZARD

  • Take precautions to avoid bridging the terminals.

  • Do not contact the terminals with metal mountings, fixtures, or body parts.

Failure to follow these instructions may result in injury.

Plug-and-pull quick connects are used to mate with the plug-and-pull terminals on the HELIOS ESS battery.

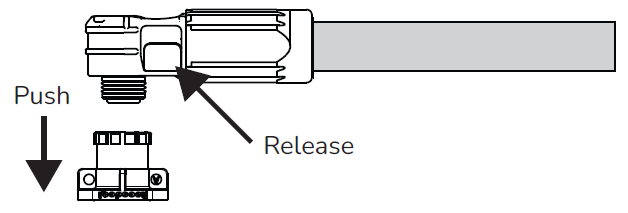

Plug and Pull Quick Connect

  1. Plug the connector into the plug-and-pull terminal.

  2. Gently pull the connector to confirm it has snapped in place.

  3. To disconnect, press the release button on the side of the connector.
