Forklift


DROP HAZARD

  • Plan ahead to minimize travel distances and length of time the forklift solely supports the cabinet.

  • When moving the battery cabinet by forklift, always transport the cabinet while it remains on its shipping pallet.

  • Use a forklift rated for a load capacity exceeding three metric tons (3000 kg [6000 lb]) with a fork length of 1300 mm (52 in) or more.

  • The tilt angle of the cabinet should not exceed 10° during movement.

  • Perform a test lift to ensure stability and correct fork positioning.

  • Move on flat surfaces only and keep the lift height as low as possible to avoid tipping.

  • Use spotters to guide the cabinet safely, keeping all personnel at a safe distance.

  • Lower the cabinet gently to prevent damage.

Failure to follow these instructions may result in injury.

NOTICE

CABINET BASE DAMAGE

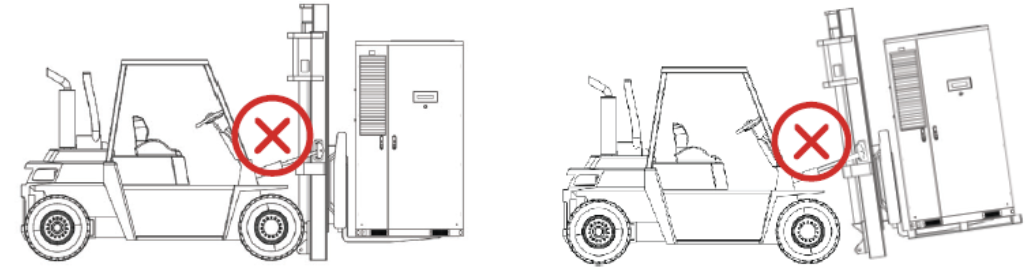

When being moved by a forklift, the AES 210HV must remain on its shipping pallet. The cable raceways at the base of the cabinet are not designed to support forklift handling.

Failure to follow these instructions may result in equipment damage.

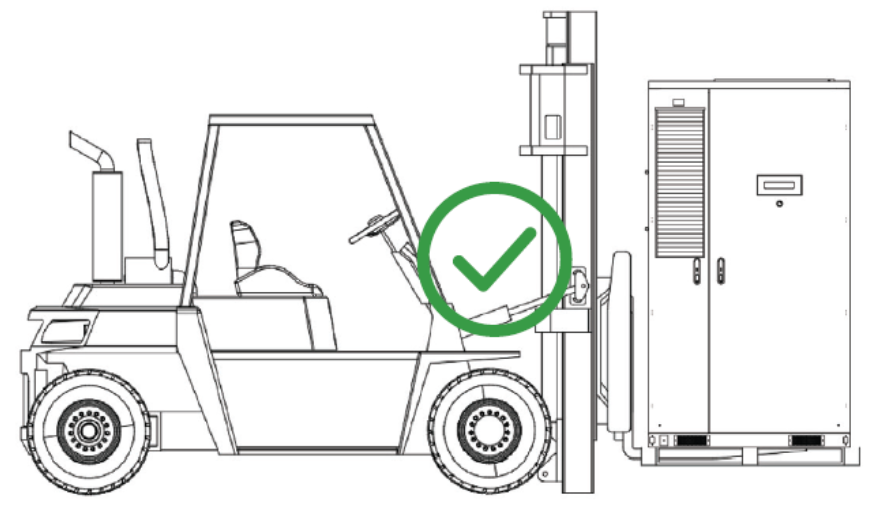

AES 210HV Forklift Handling

Forklift Handling

  • The cabinet must remain on its shipping pallet for forklift transport.

  • The battery weighs 2,500 kg. Use a heavy-duty forklift with a minimum lifting capacity of 3,000 kg (6,000 lb) and forks at least 1,300 mm (52 in) in length.

  • Keep the tilt angle below 10° and lift/lower smoothly to prevent shocks or sudden impacts.
