INTRODUCTION

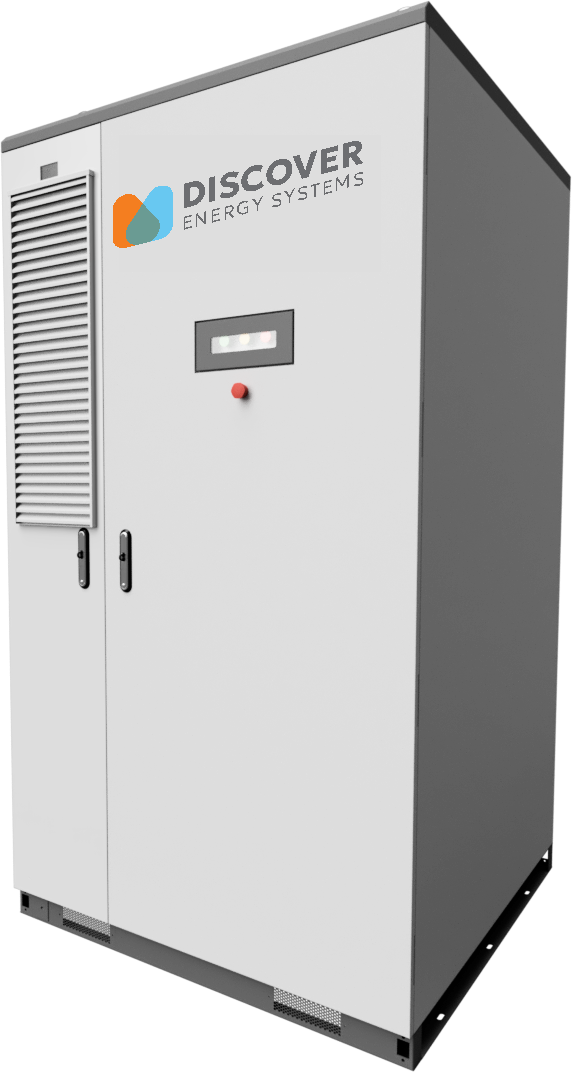

The AES 210HV is a four-pack battery cabinet with a nominal output of 665V DC. It is a liquid-cooled, outdoor energy storage system designed for seamless integration with C&I inverters. Key features include a multi-level BMS, advanced TMS, rugged enclosure, fire detection and suppression, explosion control, and thermal runaway mitigation.

Paralleling C&I hybrid inverters with AES 210HV energy storage cabinets expands power and energy capacity for both grid-connected and off-grid applications. The AES 210HV is optimized for seamless integration with high-voltage hybrid battery inverters.


Guide for UL9540-Compliant Installations

AES 210HV

Description

Unit Model Number

SLL03C2-D1P52S1R4-A01

Usable energy capacity

209 kWh

Maximum number of battery packs per unit

4

Minimum separation from other ESS (sides)

No minimum

Minimum separation from other ESS (front to back)

900 mm (35.43 in)

Minimum separation from other ESS (back to back)

500 mm (19.68 in)

Minimum separation from other ESS (front to front)

2700 mm (106.3 in)

Minimum separation from constructions and other structures

900 mm (35.43 in) (non-combustible constructions only)

Testing organization

TÜV Rheinland (Shenzhen) Co., Ltd.

  • UL9540 Test

Certificate No.: CU 72501104 0001

Report No.: CN25NDJI 001

Standards: ANSI/CAN/UL 9540:2023

  • UL9540A Test

Report No.: CN242R6S 001

Test Specification: ANSI/CAN/UL 9540A:2019 (Fourth Edition)

Additional fire suppression is required

No

Additional explosion protection is required

No

Suitable for habitable spaces of dwellings?

No

Suitable locations

Non-residential: Indoor floor-mounted or outdoor ground-mounted.

Limited access requirements

N/A

Emergency Service Contact Information

Infotrac: 1-800-535-5053 (Account # 115375)
