Mechanical Specifications

AES 210HV Mechanical Specifications

Mechanical Specifications

AES 210HV

Width (A)

1300 mm (51.2 in)

Depth (B)

1300 mm (51.2 in)

Height (C) (a)

2373.5 mm (93.4 in)

Total Weight (b)

2500 kg (5500 lb)

Battery Pack Weight (each)

350 kg (771.62 lb)

Shipping Weight (estimated)

2500 kg (5500 lb)

IP Rating

IP55

Case Material

Galvanized Steel

Color

Light Grey - RAL 7035

Anthracite Grey - RAL 7016

(a) Without lifting hooks

(b) Calculated

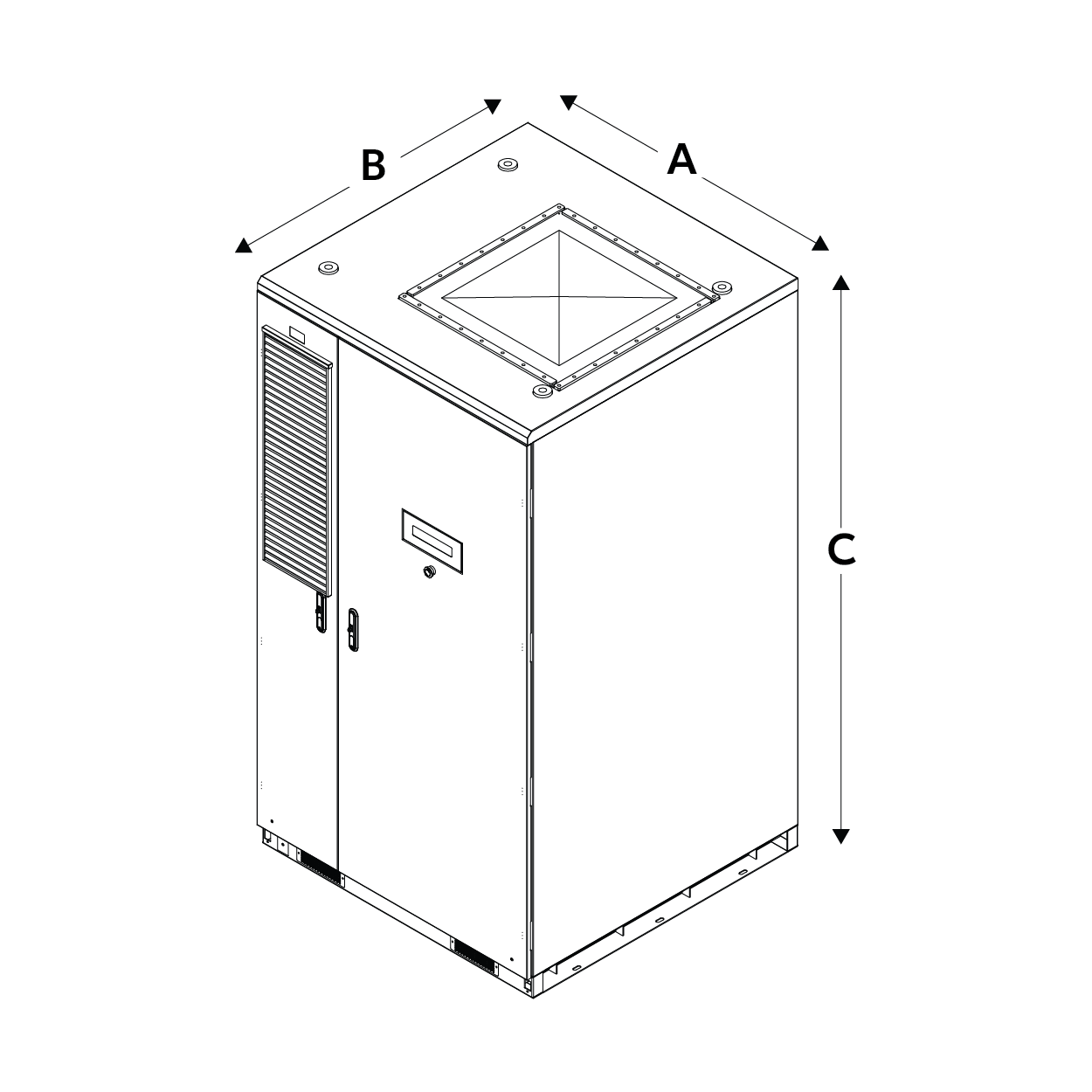

AES 210HV Drawings_AES 210HV Iso Left Dimension Lines.png

AES 210HV Battery Cabinet Dimensions



Clearance

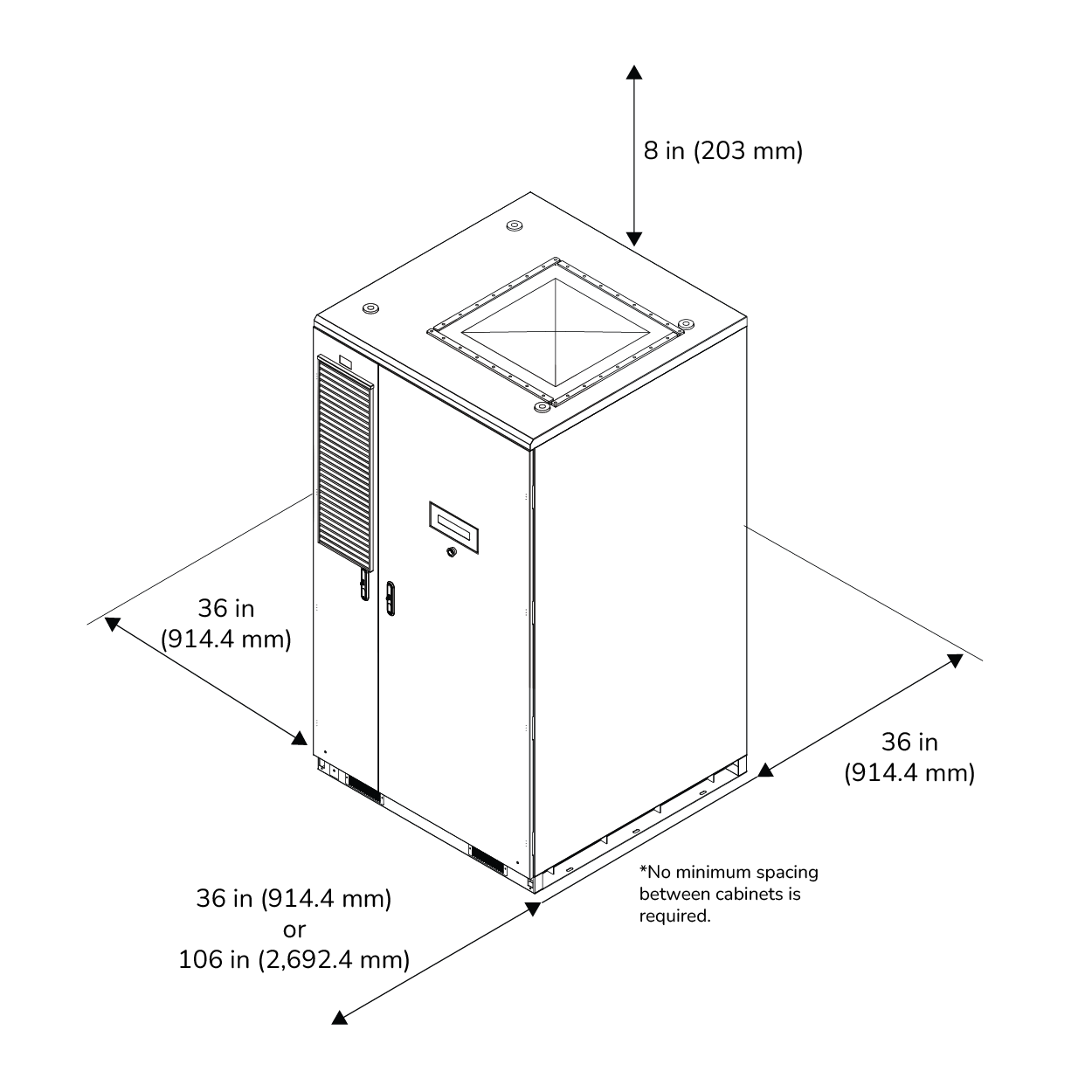

AES 210HV Clearance Specifications Placement.png

AES 210HV Battery Cabinet Clearance

NOTE

Clearance dimensions are published for airflow and service access. Consult with the local Authority-Having-Jurisdiction for accepted spacing and separation or other requirements applicable for the area of installation.




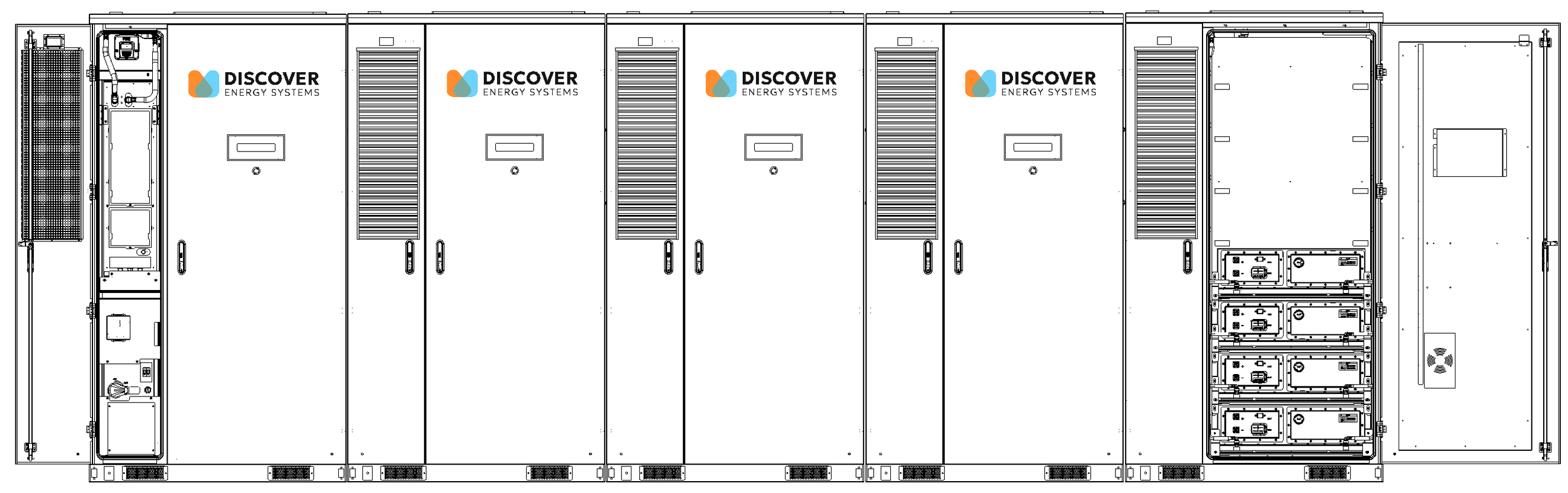

No minimum spacing between cabinets

NOTE

The AES 210HV cabinets may be placed side by side as long as the front and back airflow and service access spacings are adhered to. Consult with the local Authority-Having-Jurisdiction for accepted spacing and separation or other requirements applicable for the area of installation.
