Overhead Hoisting


TIPPING HAZARD

  • When lifting, ensure the load is evenly distributed across all lifting points to maintain a balanced vertical lift.

  • Move the unit slowly and carefully into the designated location, following standard safety protocols.

  • Do not use slings or straps without spreaders for overhead lifting.

  • Tilting of the unit is strictly prohibited.

Failure to follow these instructions may result in injury.

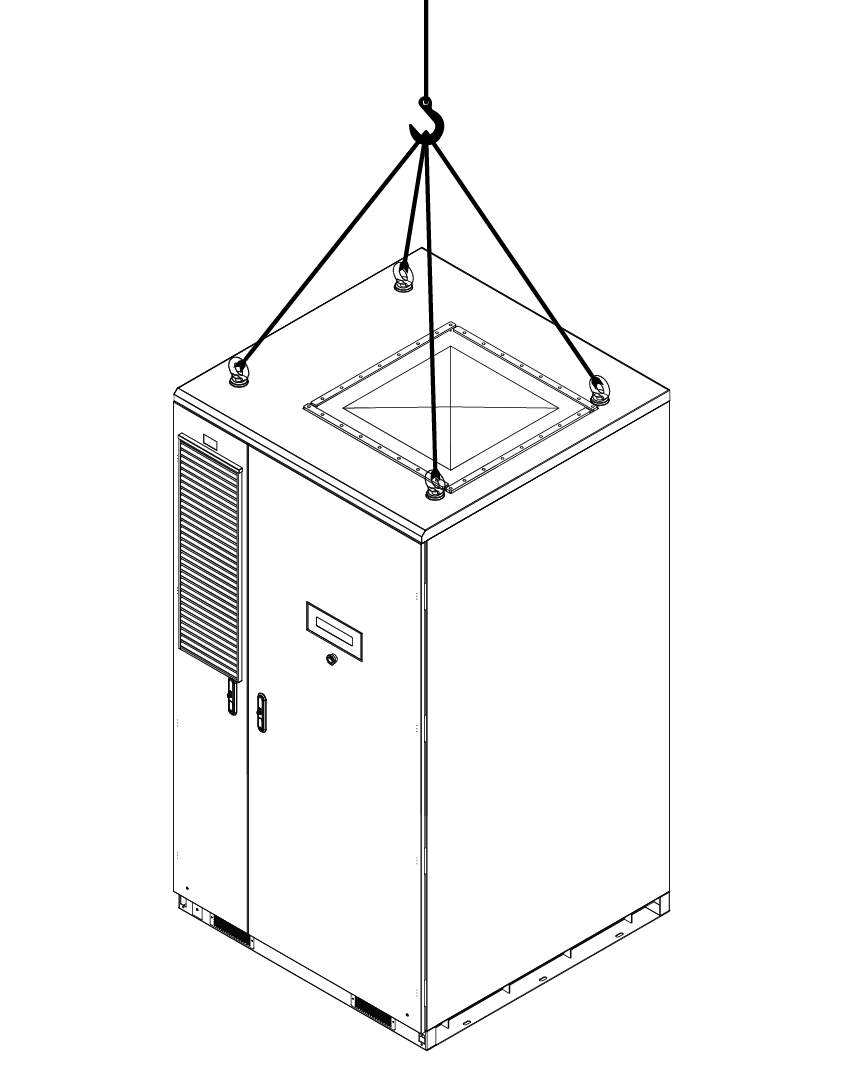

AES 210HV Overhead Hoisting

Lifting Preparation

  • Securely fasten all four lifting lugs into the designated holes at the top of the cabinet.

  • The lifting lug hole diameter is 51 mm (2 in).

  • The crane hook or lifting bar must be at least 900 mm (36 in) above the cabinet.

Hoisting Guidelines

  • Use all four lifting lugs for balanced lifting.

  • Ensure sling connections are secure and sling lengths are equal.

  • Keep the hoisting angle below 10° to maintain stability.

  • Conduct a low-height test lift to verify load stability.

  • Use lifting straps or chains rated for at least 3,000 kg (6,500 lb).

  • Spreader bars may be required to prevent straps from contacting the cabinet.

  • Keep the crane hook at least 1 meter above the cabinet for safe lifting.

  • Lock the cabinet door to prevent accidental opening.

  • Lift and lower slowly to avoid shocks or sudden impacts.

Safety Precautions

  • Keep all personnel at a safe distance during lifting and lowering.

  • Use spotters to guide the cabinet into position and ensure a clear working area.
