Connecting LYNK II to the Solis Network

Before connecting LYNK II to the Solis network, confirm that the CAN out pins on LYNK II are configured correctly. Refer to the “CAN Hardware Termination and CAN Out Pin Configuration” section.

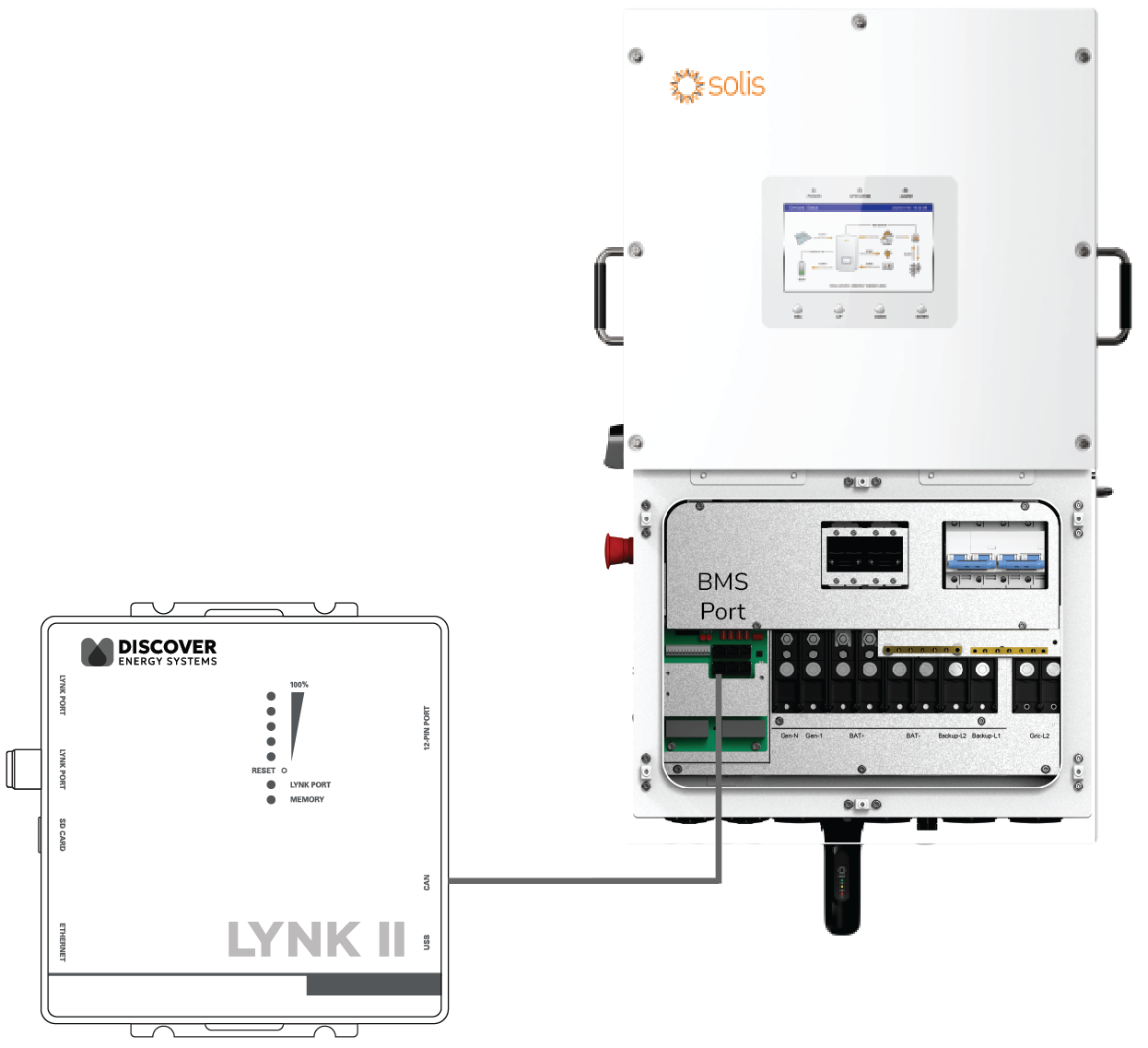

Insert one end of a CAT5e or higher straight cable into the LYNK II CAN out port and connect the other end into the BMS port on the Solis inverter-charger.


CAN Communication Wiring
