One 60K-3P Inverter, One AES 210HV (60kW/209kWh)


ELECTRIC SHOCK AND FIRE HAZARD

Follow NEC guidelines for conductor size, insulation rating (≥1000 VDC), and torque specs for safe and code-compliant installation.

Failure to follow these instructions may result in death or serious injury.

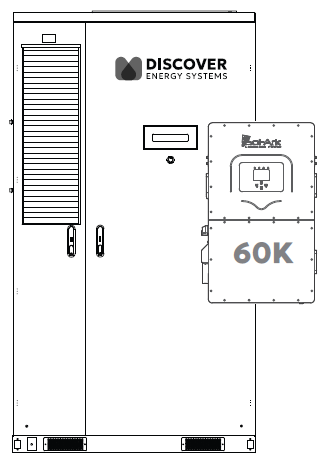

One Sol-Ark 60K-3P Inverter, One AES 210HV Battery Cabinet

Performance

Peak Discharge Rate (3.5 hours). A single 60K-3P inverter can charge and discharge at a maximum continuous rate of 100 A (60 kW), which is within the AES 210HV cabinet’s continuous operation limit. At this peak continuous performance, the battery achieves a discharge duration of approximately 3.5 hours.

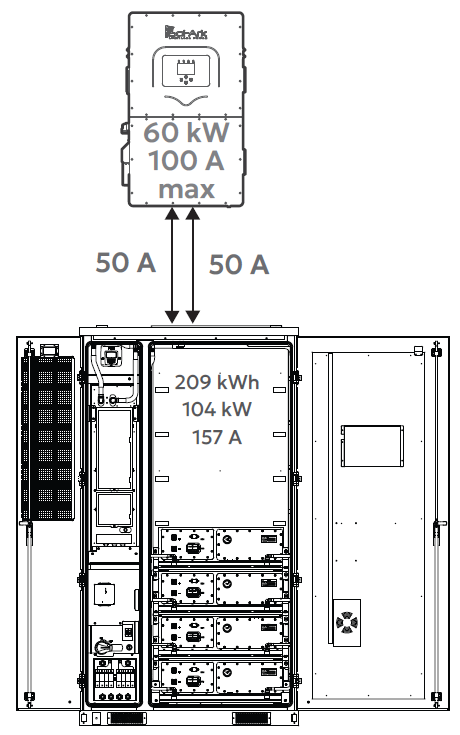

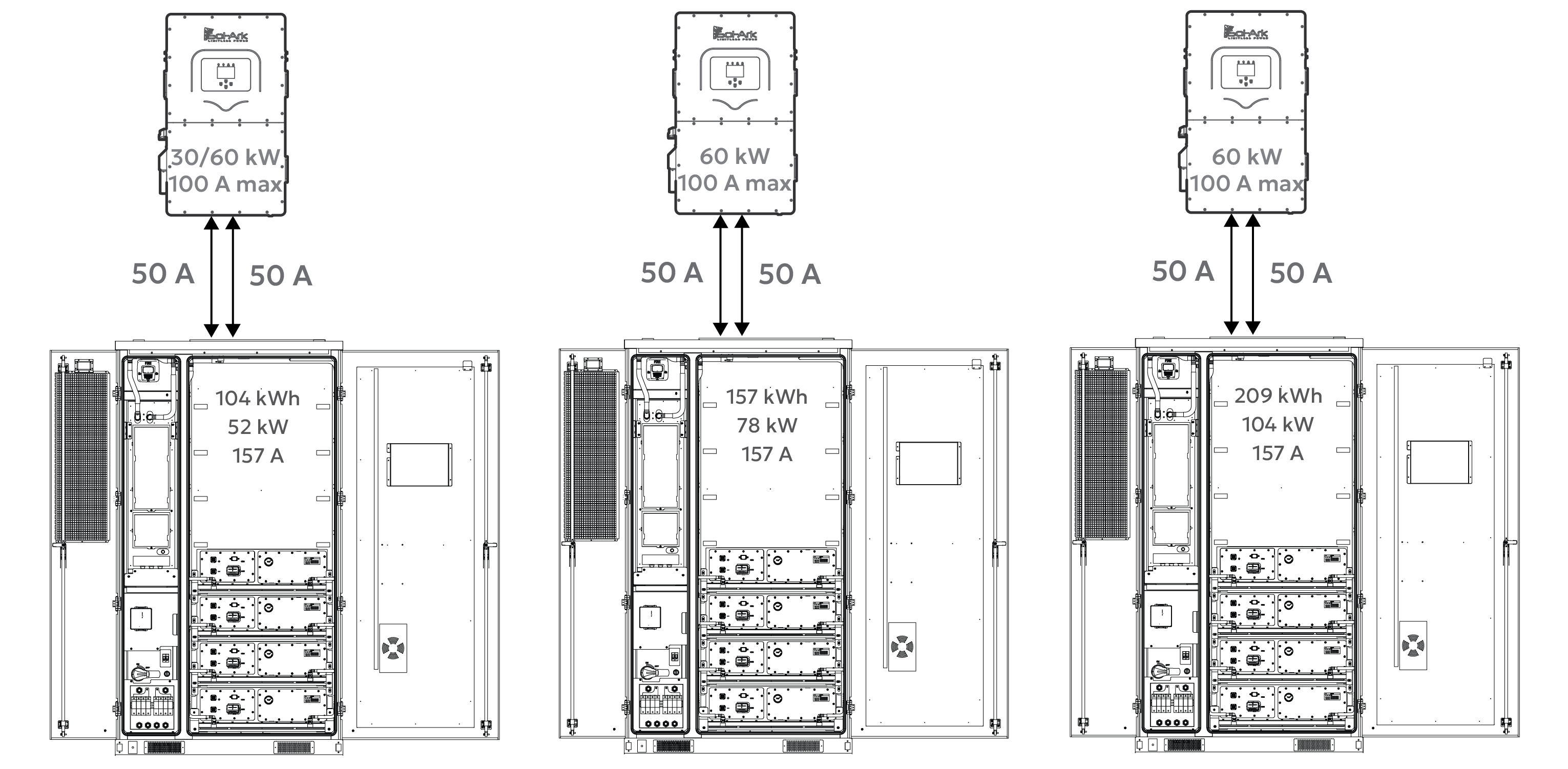

One Inverter, One Cabinet Connection

Scalability

The Sol-Ark system-level scalability supports up to 10 inverters paralleled on the AC bus. This configuration provides a maximum power output of 600 kW and energy storage of up to 2.12 MWh across all 10 inverters.

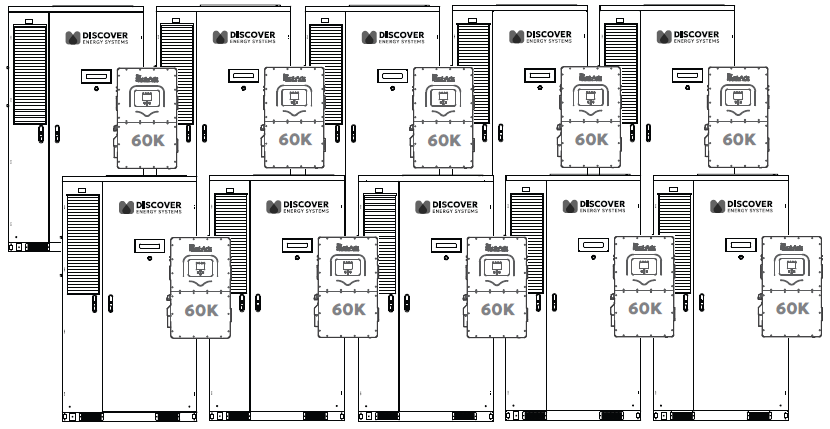

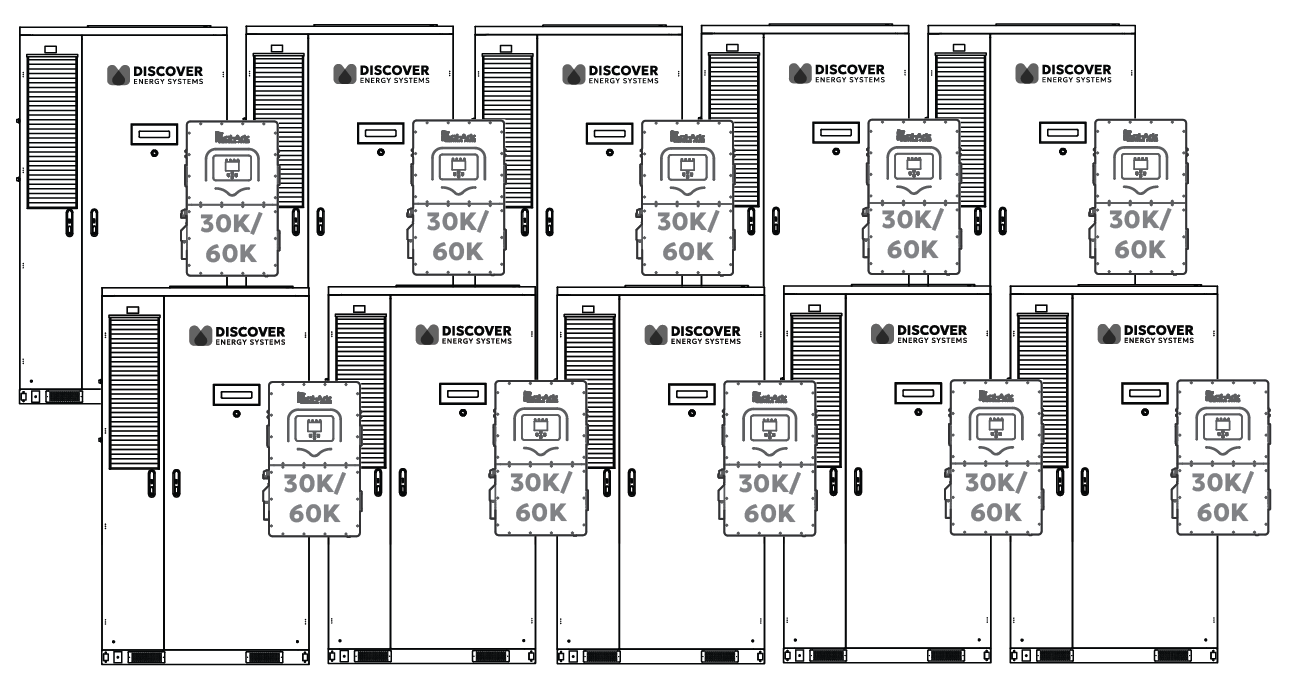

Ten Paralleled Inverters

DC Wiring

The inverter’s battery input terminals are connected to the AES 210HV using two pairs of 50 A conductors (two positive and two negative cables).

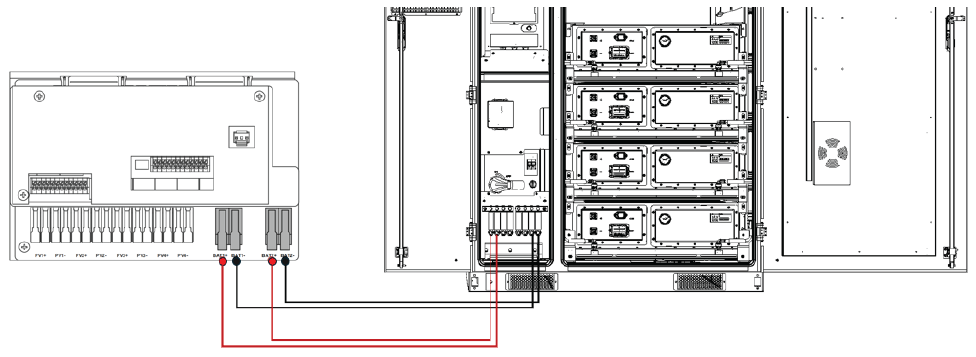

Inverter to Cabinet DC Wiring

Communication

This one-to-one setup uses the integrated LYNK II Gateway device provided with the AES 210HV cabinet. The LYNK II connects directly to the inverter’s BMS1 port and to the J3 or J4 port on the battery cabinet’s High Voltage Box.

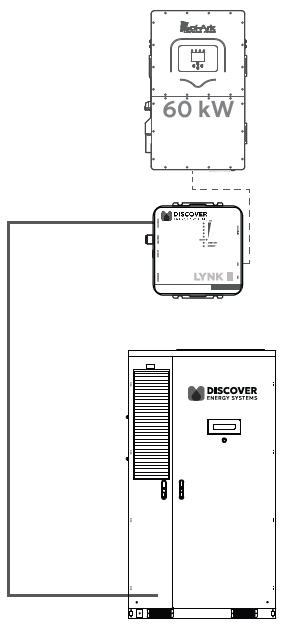

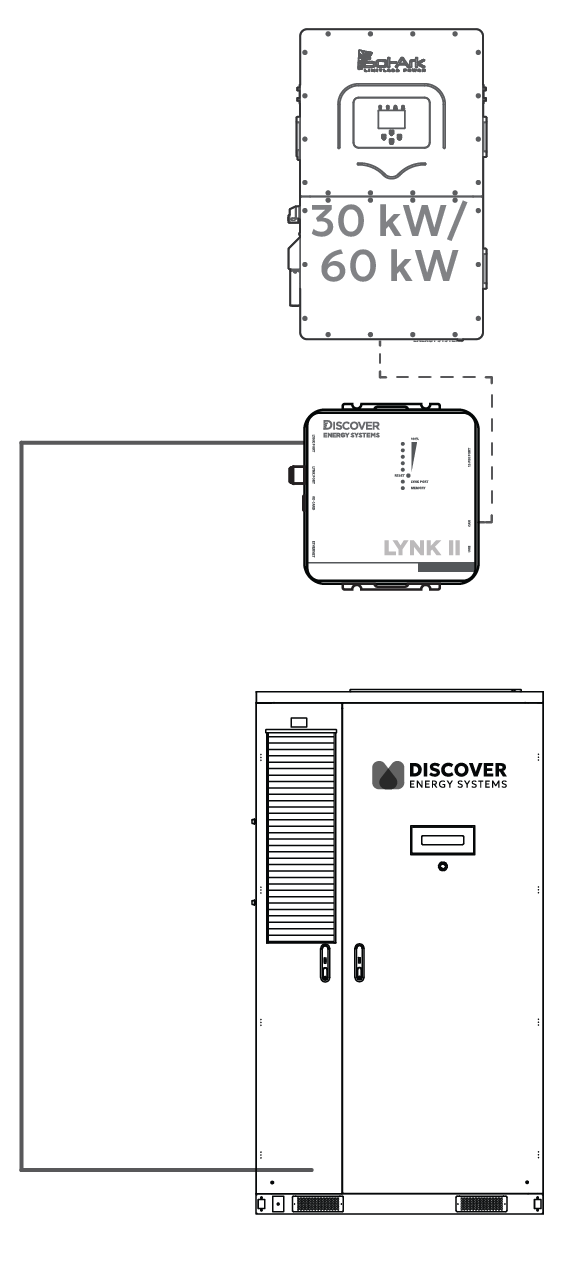

Inverter - LYNK II - Cabinet Communication
