Mounting the LYNK II

The LYNK II Gateway enables communication between the battery system and external PCS using battery CAN protocols through an RJ45 cable. For configuration details with a specific PCS, please refer to the corresponding PCS integration guide.

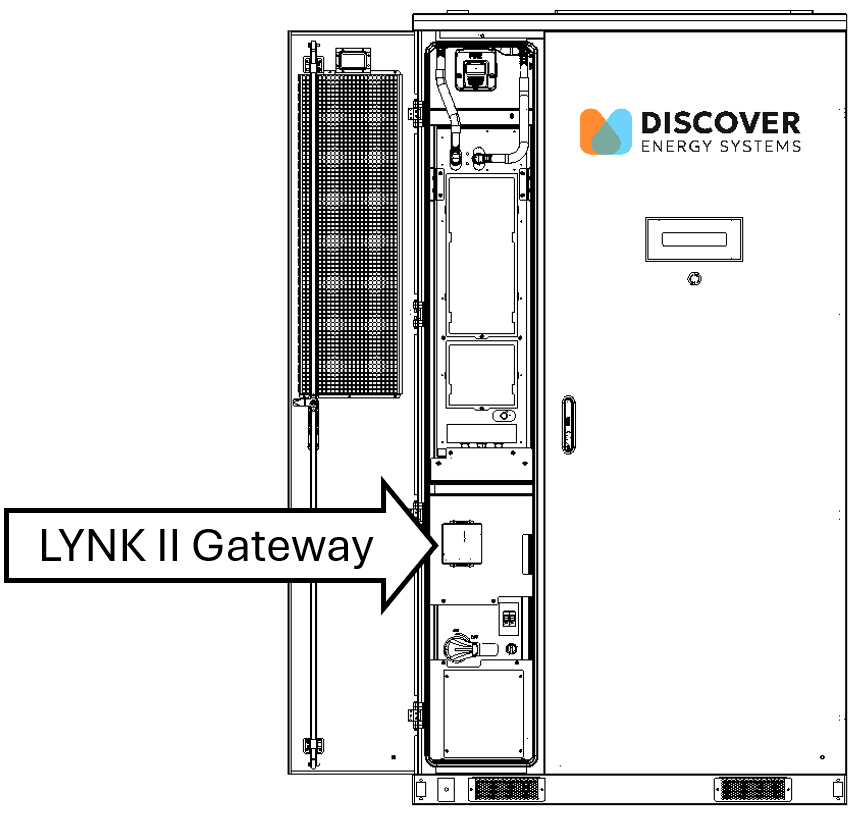

  1. Open the battery cabinet doors and install the LYNK II in the location shown in the diagram.

  2. Screws or bolts can be threaded through the integrated Mounting Slots (in Design and Features, see #12) to affix LYNK II to a flat surface. Mounting screws, bolts and nuts are not included.

  3. Threading straps through the integrated Hold Down Points (in Design and Features, see #11) can be used to secure LYNK II. Secure all cables to prevent them from working loose or becoming damaged.
