LYNK II CAN Out - RJ45 PIN Assignments for Sol-Ark Inverters
CAN signals (CAN H, CAN L, CAN GND) can be assigned to any PIN of the RJ-45 connector by adjusting the jumpers on the header board.
NOTE |
|---|
There are different ground pin (CAN GND) assignments for the Sol-Ark indoor (Legacy) and outdoor inverter-chargers. |
Sol-Ark Outdoor Inverter-Charger Pin Assignments
5K-P
8K-P
12K-P
15K-P
CAN Out | Header Jumper | RJ45 PIN |
|---|---|---|
CAN L | H2 - 5-7 | 5 |
CAN H | H3 - 8-10 | 4 |
CAN GND | H2 - 2-4 | 6 |

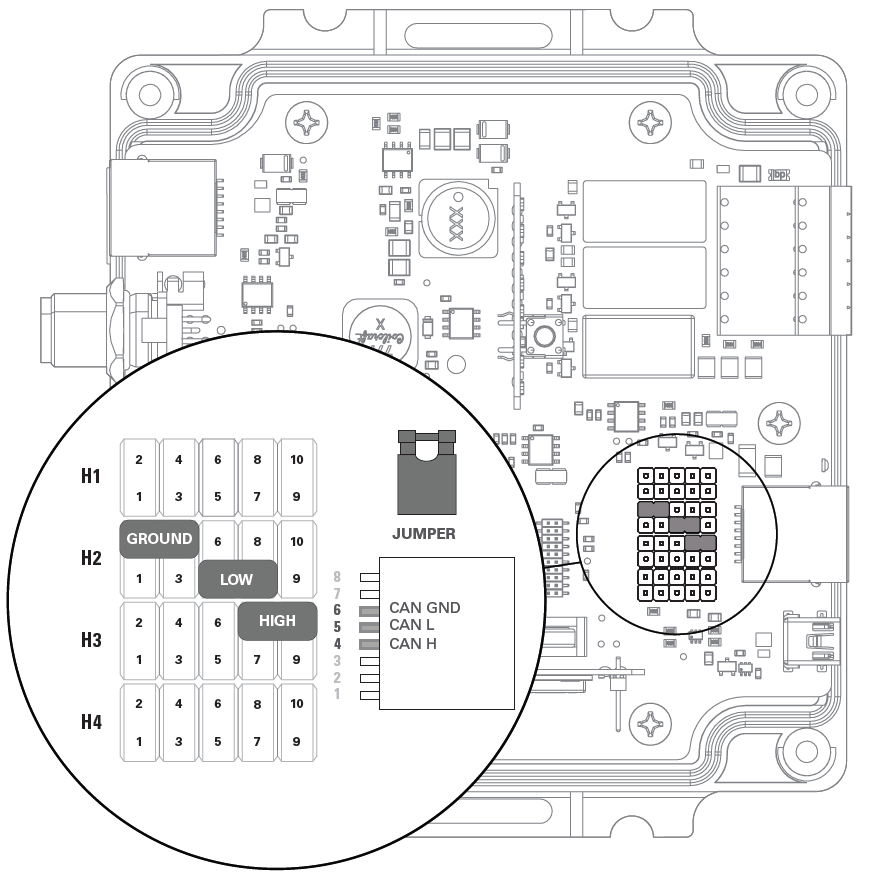

Sol-Ark Outdoor CAN Pin Assignment
Sol-Ark Indoor (Legacy) Inverter-Charger Pin Assignments
8K Hybrid
12K Hybrid

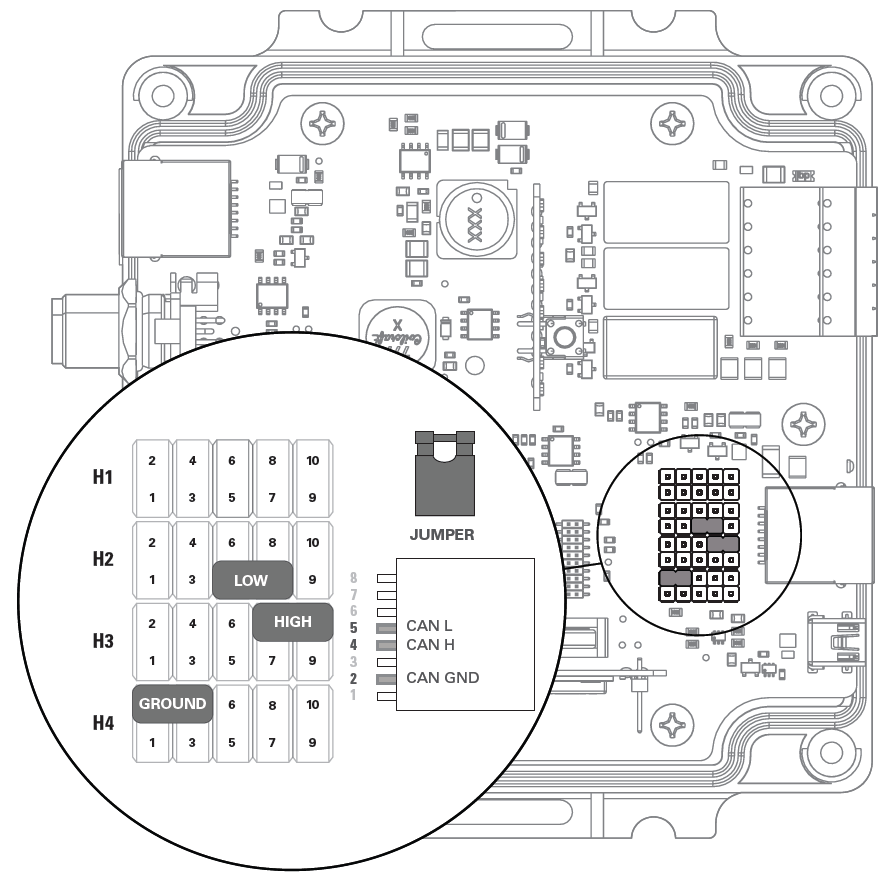

Sol-Ark Indoor (Legacy) CAN Pin Assignment
CAN Out | Header Jumper | RJ45 PIN |
|---|---|---|
CAN L | H2 - 5-7 | 5 |
CAN H | H3 - 8-10 | 4 |
CAN GND | H4 - 2-4 | 2 |
