Cables for Closed-Loop Communication Without LYNK II
The communication cable between the HELIOS ESS battery and the connected inverter-charger can differ depending on the pin outs used for CAN communication by the inverter-charger.
The following identifies the cable requirements for inverter-chargers the HELIOS ESS battery supports for closed-loop communication without using the LYNK II Communication Gateway.
Closed-Loop Communication Without LYNK II
Straight Cable
The HELIOS ESS supports closed-loop communication with the following inverters through a CAT6 or higher cable. Refer to HELIOS ESS Closed-Loop Communication - Supported Inverters.
Deye SUN 3-16K single-phase, 5-12K three-phase Hybrid Inverters
GROWATT SPH 8000TL-HU-US, SPH 10000TL-HU-US Inverters
Luxpower LXP-LB-US 8/10/12K Hybrid, SNA-US 6000 ECO Hybrid Inverters
NOARK 3K - 8K single-phase and 5K - 12K three-phase low-voltage Hybrid Inverters
Sol-Ark 5K-1P, 6K-1P, 8K-1P, 10K-1P, 5K-2P, 8K-2P, 8K-2P-L, 12K-2P, 15K-2P, and 18K-2P (Outdoor)
Solis S6-EH2P9.6K03-SV-YD-L-US, S6-EH2P11.4K03-SV-YD-L-US, S6-EH2P12K03-SV-YD-L-US, S6-EH2P14K03-SV-YD-L-US, S6-EH2P16K03-SV-YD-L-US split-phase low-voltage Hybrid Inverters
SUNSYNK 3K - 16K single-phase and 8K - 12K three-phase low-voltage Hybrid Inverters

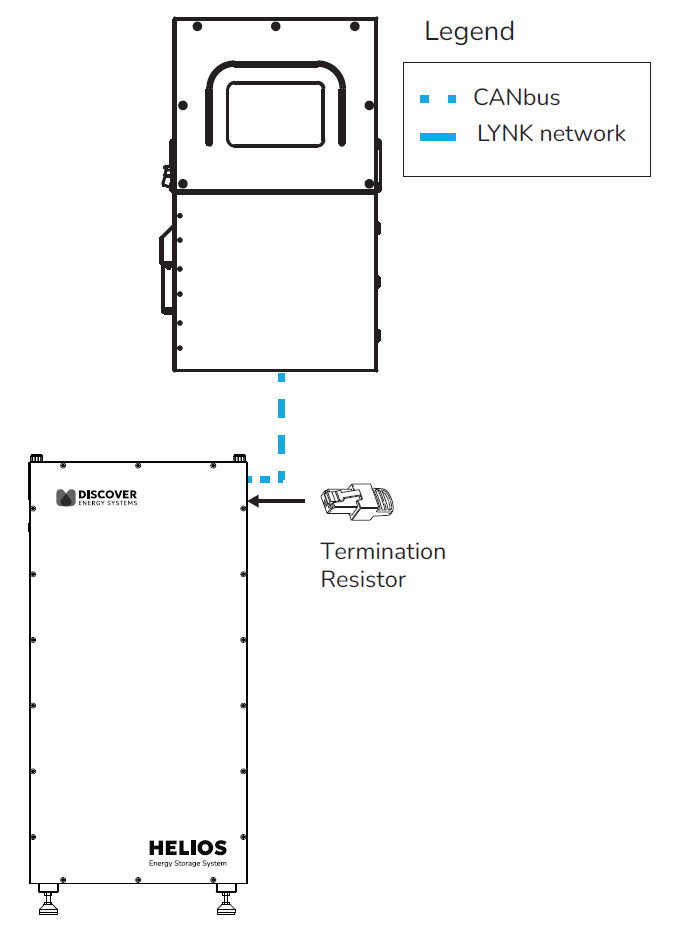

Connect the CAT6 or higher cable from the battery’s COM2 port directly to the Battery CAN port on the inverter.
NOTICE |
|---|
EQUIPMENT DAMAGE
Failure to follow these instructions may result in equipment damage. |

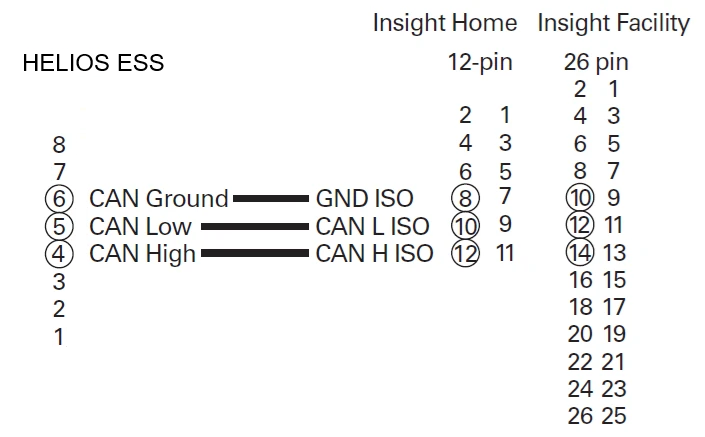

Create Your Own Cable
The HELIOS ESS supports closed-loop communication with the following inverter-chargers through a modified CAT6 or higher cable. For the list of inverter-chargers that require you to create your own cable, refer to HELIOS ESS Closed-Loop Communication - Supported Inverters.
Victron Energy
Victron Energy Color Control GX, Venus GX, VE.CAN Devices

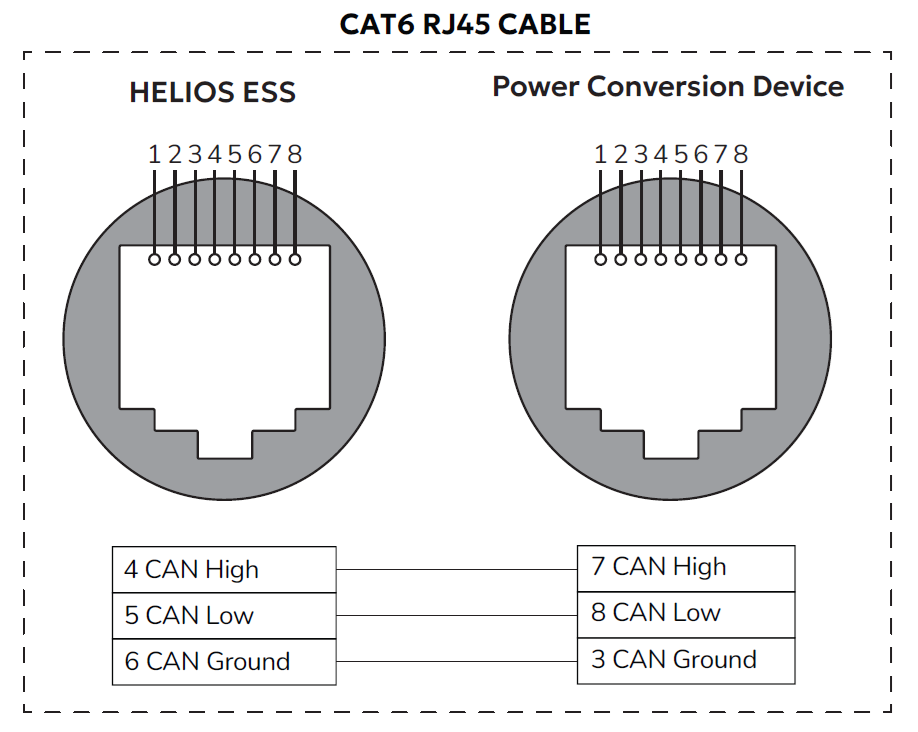

Create Your Own Cable (Victron Energy)
Legacy Sol-Ark
(Legacy) Sol-Ark 8K - 12K Hybrid Indoor inverters
Create Your Own Cable (Legacy Sol-Ark)
