LYNK II CAN Out - RJ45 PIN Assignments for SAJ Inverters

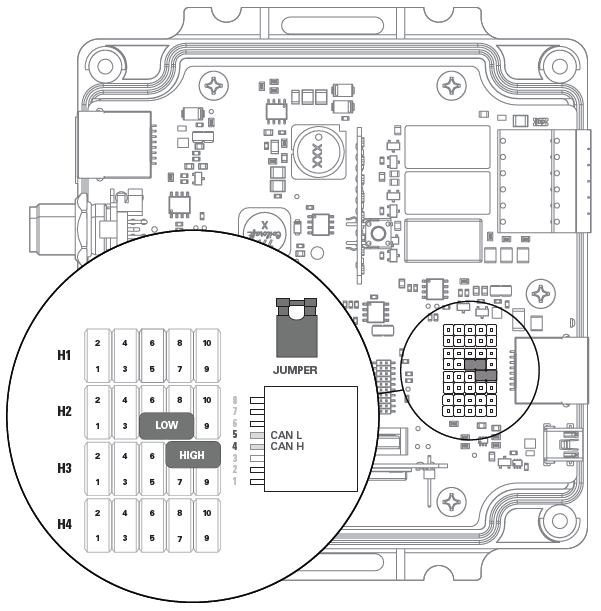

CAN signals (CAN H, CAN L, CAN GND) can be assigned to any pin of the RJ45 connector by adjusting the jumpers on the header board.


SAJ CAN pin assignment

CAN Out

Header Jumper

RJ45 Pin

CAN L

H2 - 5- 7

5

CAN H

H3 - 8 -10

4

CAN GND

N/A

N/A
