System Topology

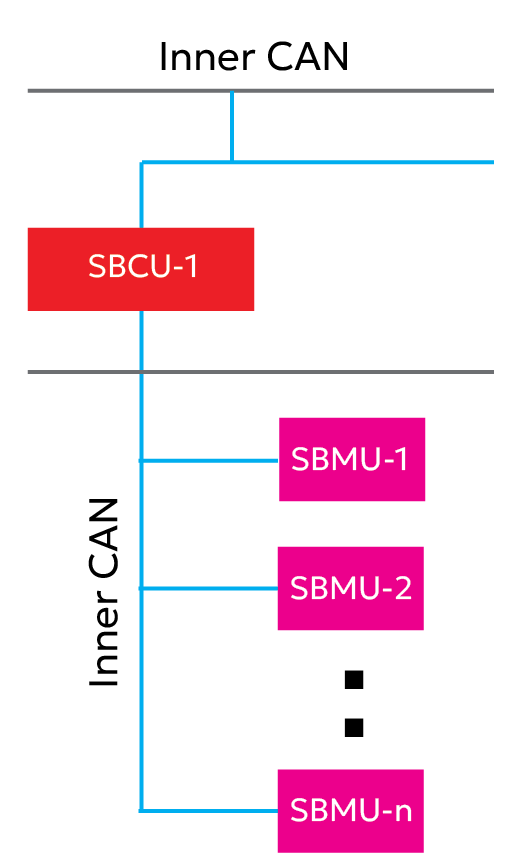

  • EMS/MGC ↔ SBCU: Modbus TCP/IP (via RJ45 Ethernet)

  • SBCU ↔ SBMU: CANbus

  • SBMU ↔ Cells: Voltage and temperature monitoring

Cluster/Pack – Definition

A cluster represents one battery rack (Cabinet), managed by one SBCU and composed of multiple SBMUs and battery cells (Packs).

  • Each SBCU communicates with EMS/MGC (via Modbus TCP/IP (via RJ45 Ethernet).

  • Cabinets are individually controlled and monitored by EMS via Modbus.

The SBCU acts as a Modbus TCP/IP server. The EMS/MGC communicates as the Modbus TCP/IP client.
