The AES Energy Storage Cabinet integrates with the Sol-Ark 30K-3P-208V / 60K-3P-480V inverter to deliver a scalable, high-performance energy storage solution for demanding applications. The integration leverages advanced battery management, efficient DC distribution, and real-time communication to optimize system operation.
Voltage Compatibility
The AES Cabinets operate at a nominal voltage of 332, 499, or 665 Vdc. The CAB-106 (332 Vdc) is compatible with the Sol-Ark 30K-3P-208V battery range (160–500 Vdc). The CAB-160 (499 Vdc) and CAB-210 (665 Vdc) are compatible with the Sol-Ark 60K-3P-480V (160 - 800V Vdc) and 100K-3P-480V (160–850 Vdc) battery input ranges. This compatibility supports efficient power delivery with minimal conversion loss.
Dual Battery Terminals
The Sol-Ark 30K and 60K inverters feature two independent battery input terminals, each rated for 50 Adc (combined maximum of 100 A). The Sol-Ark 100K features two independent battery input terminals, each rated for 80 Adc (combined maximum of 160 A). The AES Cabinet connects to both terminals through its Integrated DC Distribution Box, enabling efficient energy transfer.
Sol-Ark Battery Terminals.
Integrated DC Distribution Box

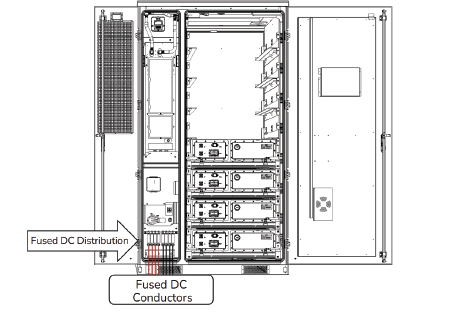

The AES Cabinets feature a DC distribution box with built-in fuses, providing a streamlined connection.
-
Four positive and four negative fused connections, including 70 A fuses per terminal (replaceable with fuses from 35 A, 40 A, 50 A, 60 A, 70 A, 80 A, 90 A, 100 A, 125 A, 150 A).
-
Use cables to meet Sol-Ark inverter requirements. Refer to Sol-Ark manuals for additional information.
-
This configuration allows the AES Cabinet to distribute power to multiple DC inputs and/or inverters.
