INTRODUCTION noark

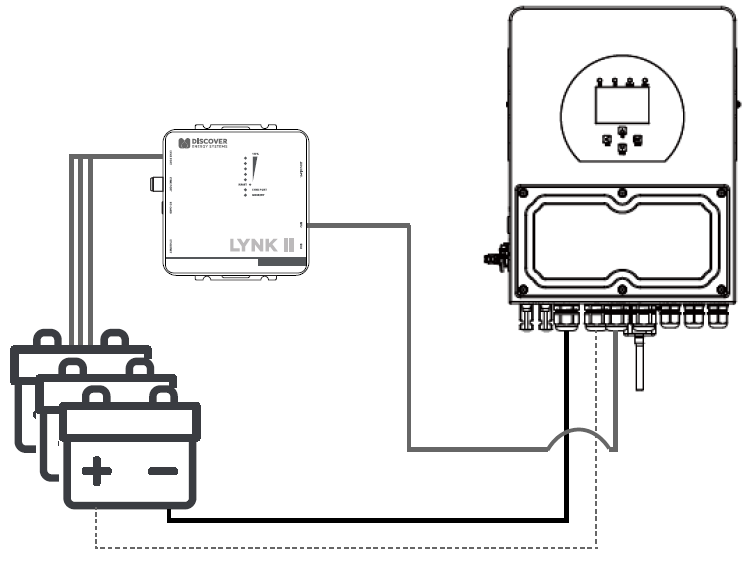

This Application Note provides information about integrating LYNK network-enabled Discover Lithium Batteries using the LYNK II Communication Gateway with NOARK power conversion devices in a managed (closed-loop) configuration.
Before installation and configuration, consult the relevant product documentation, including Manuals, Application Notes, and Installation and Configuration Guides.
NOARK Documentation
NOARK Hybrid Inverter User Manual
NOARK Dual-MPPT Single Phase Hybrid Inverter 3-6 kW datasheet
NOARK Dual-MPPT Single Phase Hybrid Inverter 7.6-8 kW datasheet
NOARK Three Phase Hybrid Inverter 5-12 kW datasheet
Visit https://noark-electric.eu/en for the most recent version of published documents.
Discover Energy Systems Documentation
AES RACKMOUNT datasheet (808-0039)
HELIOS ESS Installation and Operation Manual (805-0090)
LYNK II Installation and Operation Manual (805-0033)
Visit https://discoverenergysys.com for the most recent version of published documents.
The LYNK II Communication Gateway is compatible with the following.
Discover Lithium Batteries
A Discover battery must have a compatible network port, such as the LYNK Port, for communicating with a LYNK II device.
AES RACKMOUNT: 48-48-5120, 48-48-5120-H
HELIOS ESS: 52-48-16000
NOARK Inverters
The LYNK II Communication Gateway is compatible with the following NOARK devices:
Single Phase | Three Phase |
|---|---|
Ex9N-DH-3KS-AU Ex9N-DH-3.6KS-AU Ex9N-DH-5KS-AU Ex9N-DH-6KS-AU Ex9N-DH-7.6KS-AU Ex9N-DH-8KS-AU | Ex9N-DH-5KT-AU Ex9N-DH-6KT-AU Ex9N-DH-8KT-AU Ex9N-DH-10KT-AU Ex9N-DH-12KT-AU |
