Setting Closed-Loop Configuration on the SAJ Inverter

Complete the closed-loop configuration on the SAJ inverter after selecting the LV BMS communication protocol for the LYNK II. Confirm the Discover Lithium batteries are networked with LYNK II and that the LYNK II is connected to the SAJ inverter's CAN port.

Refer to the latest Discover Energy Systems documentation for battery values and the latest SAJ documentation for menu navigation and details on the setup procedure.

Configure the Elekeeper app

  1. Set the Discover Lithium batteries to ON and set the inverter to ON.

  2. Log in to the Elekeeper app and register your Solar and energy storage system.

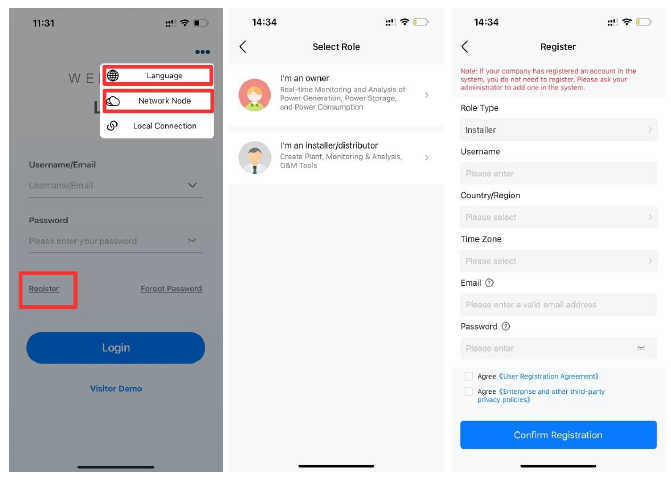

Elekeeper App

  1. From the Service page, select Remote Configuration.

  2. Pair the inverter with your phone:

    1. On the app, set the Connection Method to Bluetooth and click Next.

    2. Activate the Bluetooth function on your phone. Select the inverter based on the last digits of the inverter's serial number.

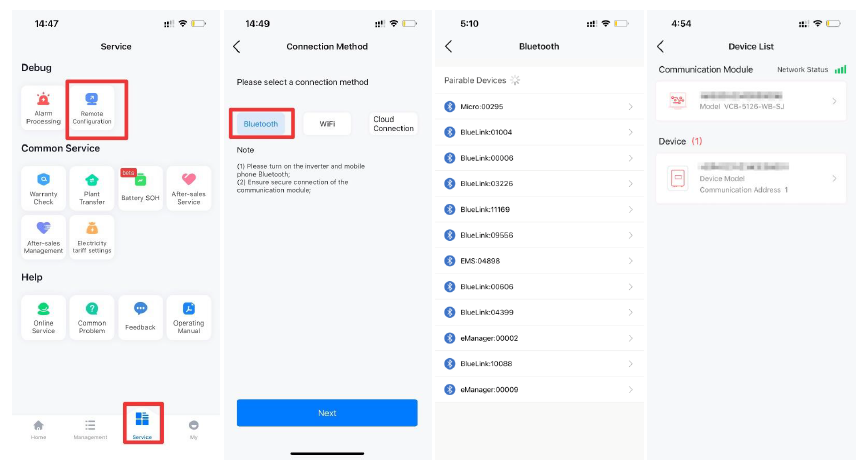

Bluetooth Communication

Configure the System Parameters

Follow the on-screen instruction to complete initialization.

  1. If connecting multiple inverters in parallel, set the parallel connection settings.

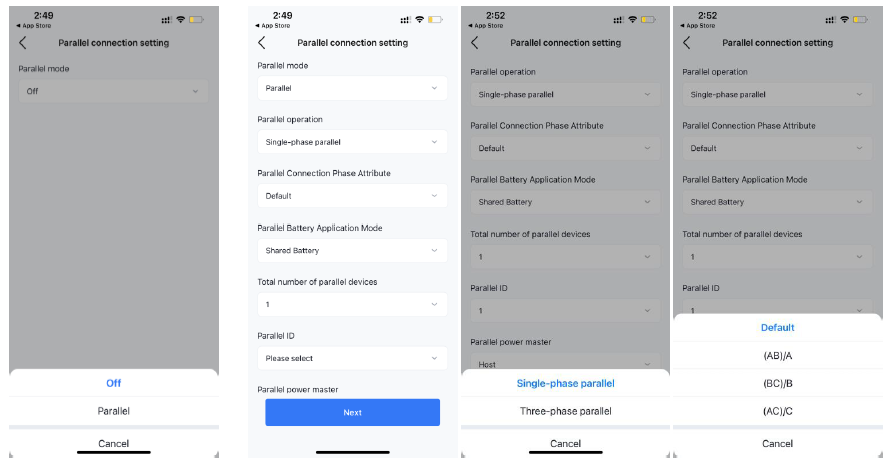

Parallel Connection Settings

  1. Configure the battery settings.

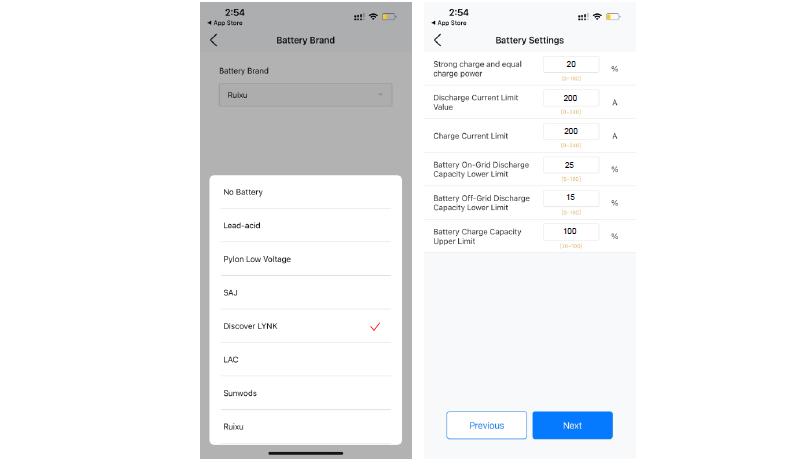

    Battery Settings

    1. In the Battery Brand page, select Discover LYNK.

    2. In the Battery Settings page, set the battery parameters based on the electrical specifications for the battery as specified in its battery manual.

  2. Configure other settings.

    1. Grid and Meter Settings such as Grid Type, Single Phase, Split Phase, electrical meter, and Current Transformer information.

    2. Export limitations, such as limit export to grid and electricity generation by inverter.

    3. Working mode, such as self-consumption, backup, time-based, or peak shaving.

    4. Country and grid code.

  3. Select Next to apply changes and view the configuration on the Device Info page.

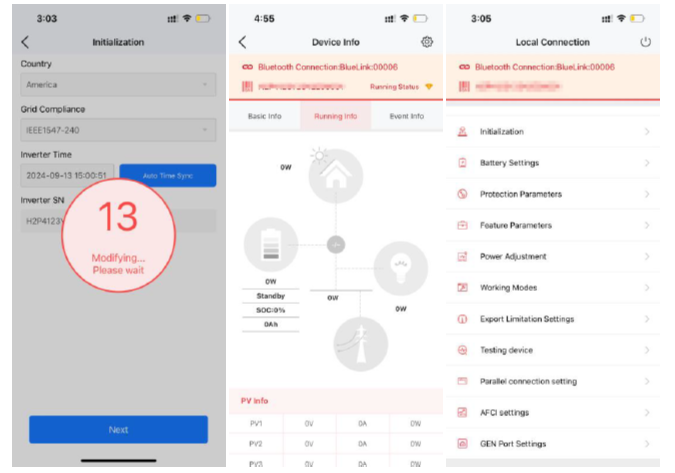

Initialization Settings Complete

NOTE

Depending on your system and particular use case, there may be other settings that require configuration. Refer to the inverter manual for information on these settings.
