When pairing the AES battery cabinet with a Sol-Ark inverter, discharge performance is governed by the inverter's battery input rating (30 kW or 60 kW). AES CAB-106 / CAB-160 / CAB-210 supports continuous output of 52 / 78 / 104 kW (C/2 rate) or approximately 157 Adc.

Inverter Model	Max Power Battery
30K-3P-208V	30 kW
60K-3P-480V	60 kW
100K-3P-480V	100 kW

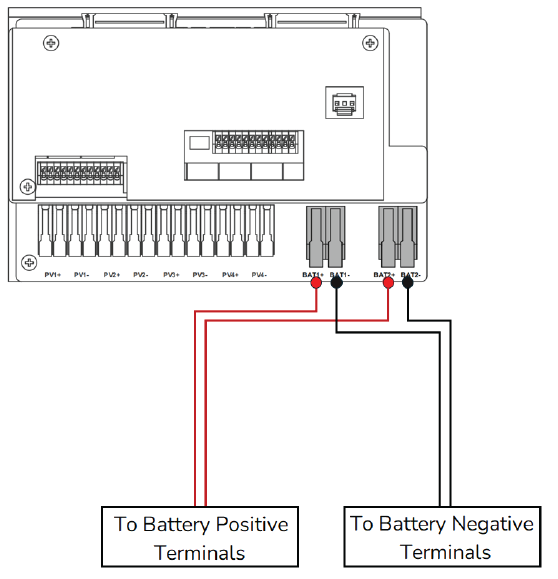

Multi-Terminal Installation

Properly Rated Cables. Cables for high-voltage DC connections should be rated to at least 1 kV to provide a safety margin for the system’s maximum battery voltage of 375 Vdc (CAB-106), 560 Vdc (CAB-160), or 750 Vdc (CAB-210).

Inverter	Ports	Max. Terminal Rating	Terminal Wire Size Range
30K-3P-208V / 60K-3P-480V	Battery Port A	50 Adc	Refer to Sol-Ark Inverter’s Manual
	Battery Port B
100K-3P-480V	Battery Port A	80 Adc
	Battery Port B

NOTICE

EQUIPMENT DAMAGE

Confirm the polarity of all DC connections before powering on the system. Incorrect polarity can damage the equipment and void the warranty.
The AES battery cabinet supports a maximum charge/discharge current of 157 A, or about 78 A per port. Use appropriately sized fuses to maximize charging and discharging energy without compromise.

Failure to follow these instructions may result in equipment damage.
