DC Cable and Wiring

When pairing the AES battery cabinet with a Sol-Ark inverter, discharge performance is governed by the inverter's battery input rating (30 kW or 60 kW). AES CAB-106 / CAB-160 / CAB-210 supports continuous output of 52 / 78 / 104 kW (C/2 rate) or approximately 157 Adc.

In applications that use two Sol-Ark inverters connected to a single AES battery cabinet, the inverters’ DC input will be limited to the cabinet’s continuous current rating of 157 A, which is split between the inverters to balance the power evenly. Multiple AES battery cabinets may be required to support the full output of two inverters.

Inverter Model	Max Power Battery
30K-3P-208V	30 kW
60K-3P-480V	60 kW

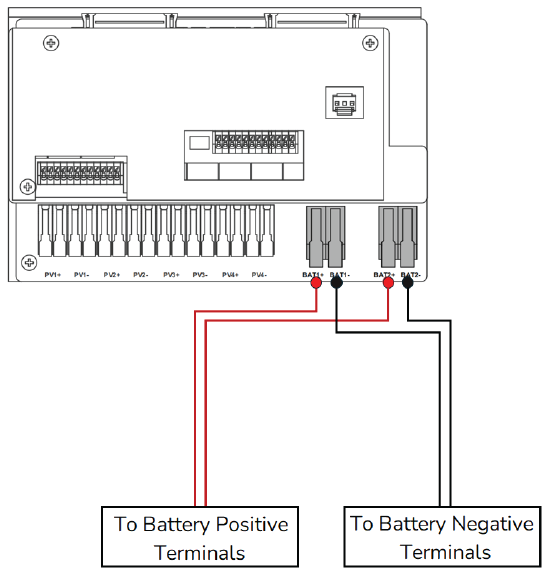

Multi-Terminal Installation

Properly Rated Cables. Cables for high-voltage DC connections should be rated to at least 1 kV to provide a safety margin for the system’s maximum battery voltage of 375 Vdc (CAB-106), 560 Vdc (CAB-160), or 750 Vdc (CAB-210).

Inverter Ports	Max. Terminal Rating	Terminal Wire Size Range
Battery Port A	50 Adc	6 AWG - 4 AWG
Battery Port B	50 Adc	6 AWG - 4 AWG

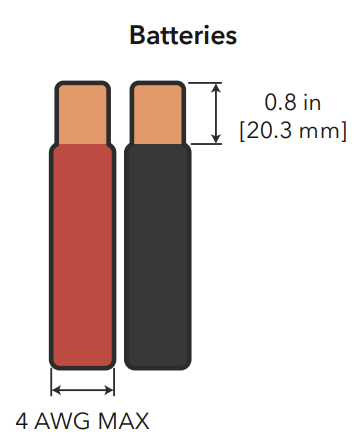

Battery Cables

NOTICE

EQUIPMENT DAMAGE

Confirm the polarity of all DC connections before powering on the system. Incorrect polarity can damage the equipment and void the warranty.
The AES battery cabinet supports a maximum charge/discharge current of 157 A, or about 78 A per port. Use appropriately sized fuses to maximize charging and discharging energy without compromise.

Failure to follow these instructions may result in equipment damage.
