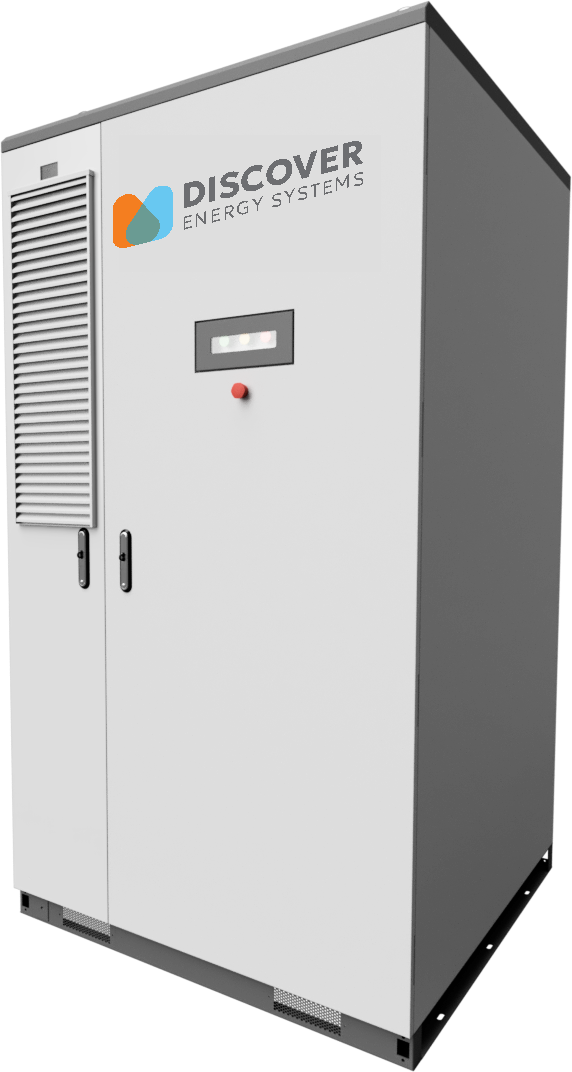

The AES 210HV is a four-pack battery cabinet with a nominal output of 665V DC. It is a liquid-cooled, outdoor energy storage system designed for seamless integration with C&I inverters. Key features include a multi-level BMS, advanced TMS, rugged enclosure, fire detection and suppression, explosion control, and thermal runaway mitigation.
Paralleling C&I hybrid inverters with AES 210HV energy storage cabinets expands power and energy capacity for both grid-connected and off-grid applications. The AES 210HV is optimized for seamless integration with high-voltage hybrid battery inverters.
Guide for UL9540-Compliant Installations
|
AES 210HV |
Description |
|---|---|
|
Unit Model Number |
SLL03C2-D1P52S1R4-A01 |
|
Usable energy capacity |
209 kWh |
|
Maximum number of battery packs per unit |
4 |
|
Minimum separation from other ESS (sides) |
No minimum |
|
Minimum separation from other ESS (front to back) |
900 mm (35.43 in) |
|
Minimum separation from other ESS (back to back) |
500 mm (19.68 in) |
|
Minimum separation from other ESS (front to front) |
2700 mm (106.3 in) |
|
Minimum separation from constructions and other structures |
900 mm (35.43 in) (non-combustible constructions only) |
|
Testing organization |
TÜV Rheinland (Shenzhen) Co., Ltd. |
|
Certificate No.: CU 72501104 0001 Report No.: CN25NDJI 001 Standards: ANSI/CAN/UL 9540:2023 |
|
Report No.: CN242R6S 001 Test Specification: ANSI/CAN/UL 9540A:2019 (Fourth Edition) |
|
Additional fire suppression is required |
No |
|
Additional explosion protection is required |
No |
|
Suitable for habitable spaces of dwellings? |
No |
|
Suitable locations |
Non-residential: Indoor floor-mounted or outdoor ground-mounted. |
|
Limited access requirements |
N/A |
|
Emergency Service Contact Information |
Infotrac: 1-800-535-5053 (Account # 115375) |
