LYNK Port Pin Assignment

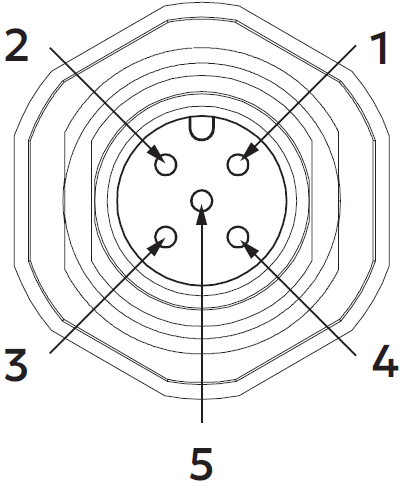

Pin Map M12 A-Code Circular Metric Connector

PIN	DESCRIPTION
1	Do Not Populate. Do not terminate to ground. Do not terminate to power. Do not terminate to CAN_L or CAN_H.⁽¹⁾
2	AEbus CAN L
3	AEbus CAN H
4	AEbus +12V
5	AEbus GND

⁽¹⁾ Except when instructed by Discover Energy Systems.

Pin Map RJ45 Terminal Connector

PIN	DESCRIPTION
1	+12V
2	+12V
3	Do Not Populate. Do not terminate to ground. Do not terminate to power. Do not terminate to CAN_L or CAN_H.⁽¹⁾
4	CAN Low
5	CAN High
6	Do Not Populate. Do not terminate to ground. Do not terminate to power. Do not terminate to CAN_L or CAN_H.⁽¹⁾
7	-12V
8	-12V

⁽¹⁾ Except when instructed by Discover Energy Systems.
