Pin Assignments for Phoenix 12-pin Connector
Pin Assignments for Phoenix 12-pin Connector

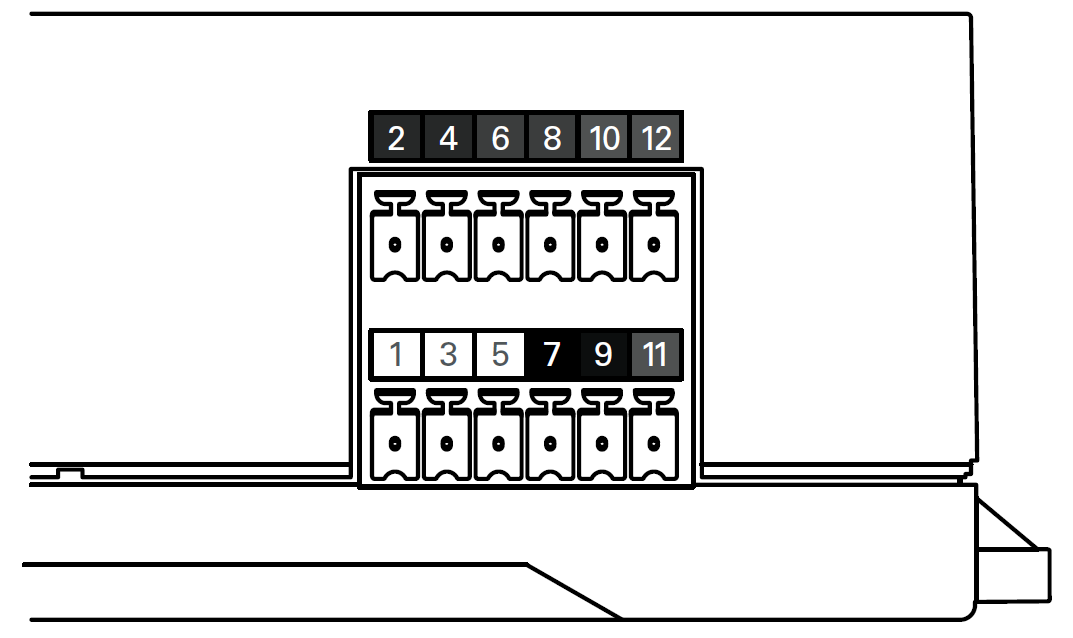

12-Pin Connector Layout | |||||
|---|---|---|---|---|---|
2 | 4 | 6 | 8 | 10 | 12 |
RELAY 3 COM | RELAY 3 N/O | RELAY 2 N/O | RELAY 2 COM | RELAY 1 N/O | RELAY 1 COM |
1 | 3 | 5 | 7 | 9 | 11 |
CAN HIGH | CAN LOW | CAN GND | POWER GND | POWER Vin (13-90V) | RELAY 1 N/C |
