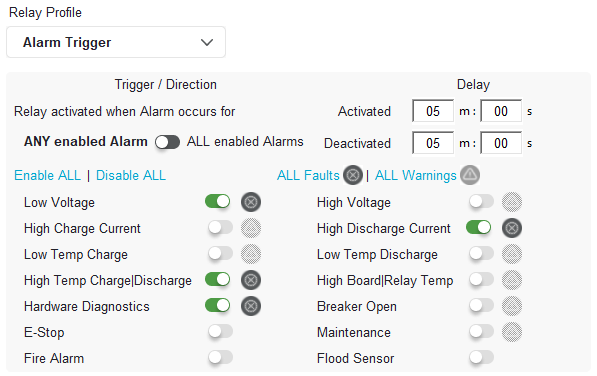

Relay Configuration - Alarm Trigger

Low Voltage

The battery cell voltage is too low, resulting in a warning or fault.

High Voltage

The battery cell voltage is too high, resulting in a warning or fault.

High Charge Current

The charge current is too high, resulting in a warning or fault.

High Discharge Current

The discharge current is too high, resulting in a warning or fault.

Low Temp Charge

The battery temperature is too low to charge, resulting in a warning or fault.

Low Temp Discharge

The battery temperature is too low to discharge, resulting in a warning or fault.

High Temp Charge/Discharge

The battery temperature is too high to charge/discharge, resulting in a warning or fault.

High Board/Relay Temp

The board/relay temperature is too high, resulting in a warning or fault.

Hardware Diagnostics

Battery Management System hardware fault. This may indicate issues with the voltage or current sensors, hardware clock, relays, or a load qualification error.

Breaker Open

The breaker is open on the battery. AES RACKMOUNT, AES 210HV, and AES Battery Cabinet only.

E-Stop

The E-stop button has been activated. AES 210HV and AES Battery Cabinet only.

Maintenance

Maintenance alarm has been activated. A wide range of issues may activate this trigger, such as high temperature, large differences in voltage, BCU or EMS relay control override, and problems with battery clusters.

AES 210HV and AES Battery Cabinet only.

Fire Alarm

The fire alarm has been activated. AES 210HV and AES Battery Cabinet only.

Flood Sensor

The flood sensor has been activated. AES 210HV and AES Battery Cabinet only.
