Trigger/Feature |
Description |
|---|---|
|

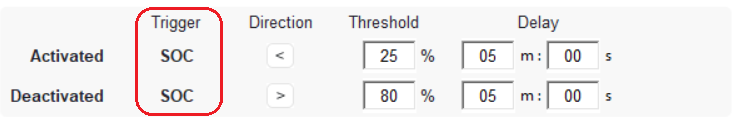

Trigger (Source) |
Selects the trigger that activates the relay: SOC, battery cell voltage, battery cell temperature, current, or alarm.
|
|

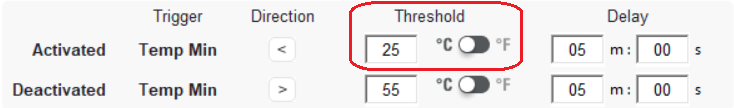

Trigger - Activated Threshold |
Sets the voltage, temperature, SOC, or current threshold that activates the relay.
|
|

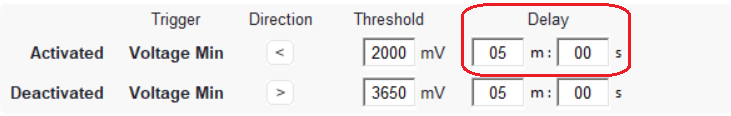

Trigger - Activated Delay |
Sets a delay period between when the trigger source reaches the activation threshold and when the relay is activated.
|
|

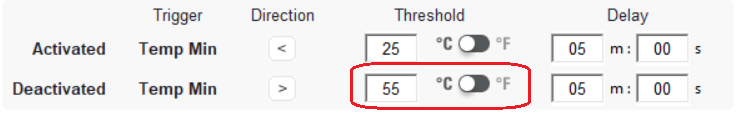

Trigger - Deactivated Threshold |
Sets the voltage, temperature, SOC, or current threshold that deactivates the relay.
|
|

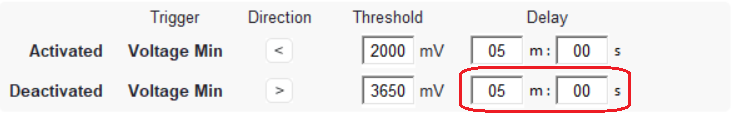

Trigger - Deactivated Delay |
Sets a delay period between when the trigger source reaches the deactivation threshold and when the relay is deactivated.
|
|

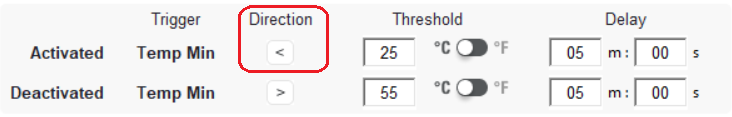

Trigger Direction (<) |
Sets the trigger to activate or deactivate the relay when the Trigger Source is less than the threshold value.
|
|

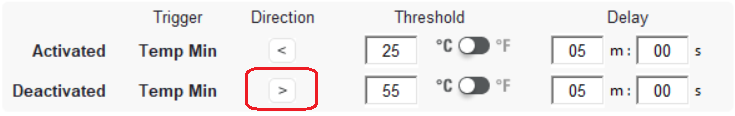

Trigger Direction (>) |
Sets the trigger to activate or deactivate the relay when the Trigger Source is greater than the threshold value.
|
|
Max Run Time
|
Only available with Generator start/stop. Sets the maximum time that a relay can remain activated after being triggered. Independent of Quiet Time or Exercise Time.
At the end of the Max Run Time, if the trigger value is still below the threshold, the relay will be re-triggered |
|
Quiet Time (Scheduled Off) |
Only available with Generator start/stop. The relay will not activate ON during the programmed period.
This feature is overridden when the relay is Forced ON or Forced OFF. |
|

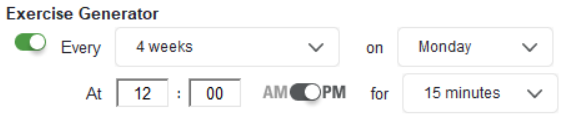

Exercise Generator (Scheduled On) |
Only available with Generator start/stop. The relay will activate ON and OFF based on the programmed period, regardless of other values and thresholds.
This feature is overridden when the relay is Forced On or Forced Off. |
