Open-Loop - Batt Setup > Discharge

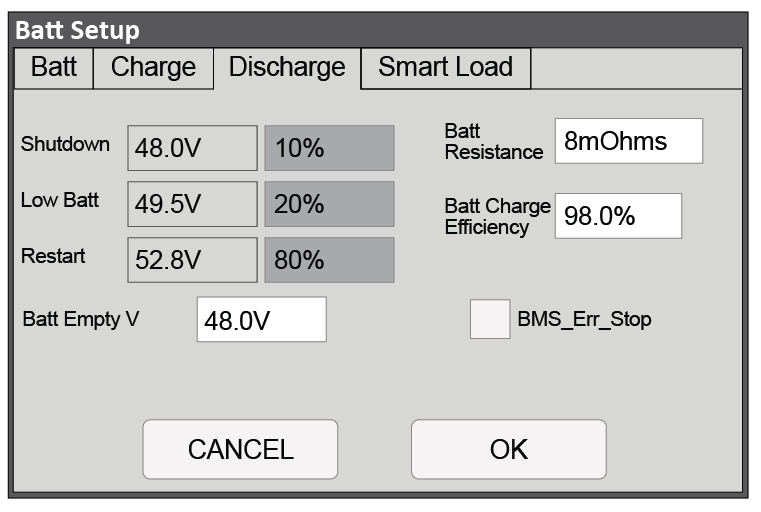

Touch the DISCHARGE tab onscreen to start the programming sequence (see image below).

  • Touch the OK button to save all onscreen values - Ignore data displayed in GREY boxes.


Open-Loop Battery Setup > Discharge (Two 100Ah AES RACKMOUNT Batteries with 12K-P)

Batt Setup > Discharge



BMS_Err_Stop

Disable

Shutdown

48.0 V (1)

Low Batt

49.5 V (1)

Restart

52.8 V (1)

Batt Empty V

48.0 V

Batt Resistance

Set to: Ten mOhm divided by the number of batteries, plus the mOhm value of resistance for interconnection and homerun cabling. (2)

Batt Charge Efficiency

98.0 %

(1) Discharge state-of-charge percentage values are unavailable in an open-loop (voltage-based) configuration.

(2) This value should include cable and connection resistance. The formula is provided to assist with the calculation of a general value.

The values and parameters used are for an operating temperature of 25 °C (77 °F).
