Setting the LYNK II Communication Protocol for Sol-Ark

After establishing the open-loop configuration, the LYNK II Communication Protocol is set, followed by the Sol-Ark closed-loop configuration.

The Protocol Configuration Procedure

  1. Download the current version of LYNK ACCESS software from the Discover Battery website to obtain the most up-to-date suite of available protocol configurations.

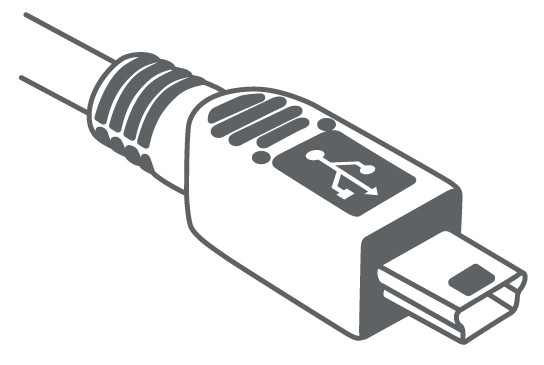

USB Type-B mini plug

  1. Using a USB cable with a Type-B mini-plug, connect the 64-bit Windows 10 / 11 device running LYNK ACCESS software to the USB port on LYNK II. Ensure LYNK II is powered and connected to the correct Sol-Ark COM port.

  2. Open LYNK ACCESS. Options for configuration and settings are found by selecting the LYNK tab.

  3. Connect the LYNK II and open LYNK ACCESS. Ensure that only one LYNK device is connected to the computer.

  4. Open LYNK ACCESS and select the LYNK tab. Select the blue gear icon in the upper right area of the CAN Settings tile.

  5. Select the pre-configured Sol-Ark protocol to complete the closed-loop configuration for LYNK II. Click SAVE to confirm the configuration.

NOTE

Saving configuration changes using LYNK ACCESS will automatically cause LYNK II to shut down and restart.
