LYNK II CAN Out - RJ45 Pin Assignments for Victron Devices using VE.can

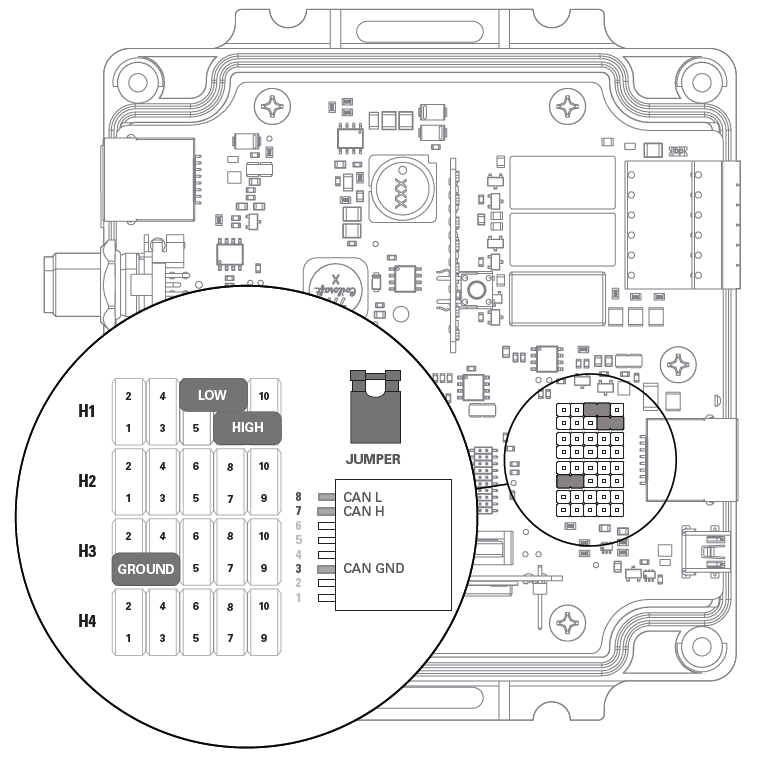

Assign CAN signals (CAN H, CAN L, CAN GND) to pins of the RJ45 connector by adjusting the jumpers on the header board.

VE.CAN Pin Assignments

CAN Out RJ45 Pin

Header Jumper

RJ45 Pin

CAN L

H1 - 6-8

8

CAN H

H1 - 7-9

7

CAN GND

H3 - 1-3

3


LYNK II Pin assignments for communication with Victron Energy devices
