LYNK II CAN OUT - RJ45 Pin Assignments for NOARK Inverters

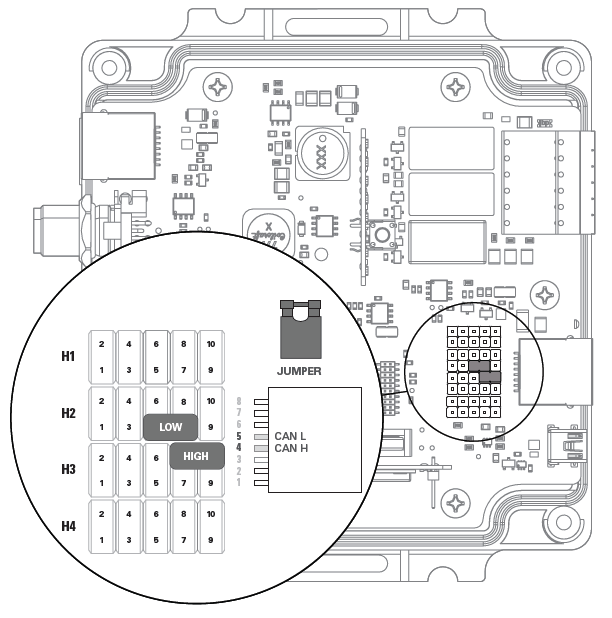

CAN signals (CAN H, CAN L, CAN GND) can be assigned to any pin of the RJ45 connector on the LYNK II by adjusting the jumpers on the header board.


CAN pin assignment for NOARK communication

CAN Out

Header Jumper

RJ45 Pin

CAN L

H2 - 5- 7

5

CAN H

H3 - 8 - 10

4

CAN GND

N/A

N/A
