INTRODUCTION

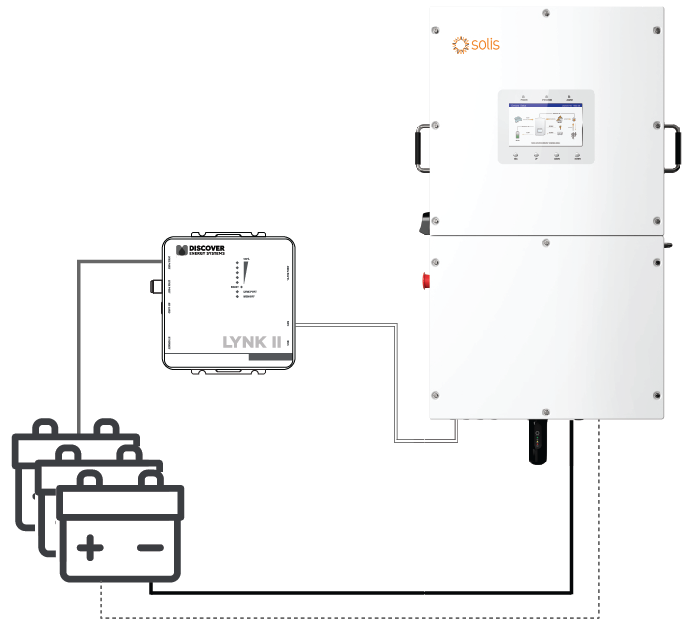

This Application Note provides information about integrating LYNK network-enabled Discover Lithium Batteries using the LYNK II Communication Gateway with Solis power conversion devices in a closed-loop configuration.
Before installation and configuration, consult the relevant product documentation, including Manuals, Application Notes, and Installation and Configuration Guides.
Solis Documentation
Solis User Manual - Home Energy Storage, Low Voltage Hybrid Inverter (Version 1, 11/2024)
Visit http://www.solisinverters.com for the most recent version of published documents.
Discover Battery Documentation
AES RACKMOUNT datasheet (808-0039)
HELIOS ESS Installation and Operation Manual (805-0090)
LYNK II Installation and Operation Manual (805-0033)
Visit https://discoverenergysys.com for the most recent version of published documents.
The LYNK II Communication Gateway is compatible with the following batteries and inverters.
Discover Lithium Batteries
A Discover battery must have a compatible network port, such as the LYNK Port, to communicate with a LYNK II device.
AES RACKMOUNT: 48-48-5120, 48-48-5120-H
HELIOS ESS: 52-48-16000
Solis Inverters
The LYNK II Communication Gateway is compatible with the following Solis devices:
S6-EH2P 9.6K03-SV-YD-L-US
S6-EH2P 11.4K03-SV-YD-L-US
S6-EH2P 12K03-SV-YD-L-US
S6-EH2P 14K03-SV-YD-L-US
S6-EH2P 16K03-SV-YD-L-US
