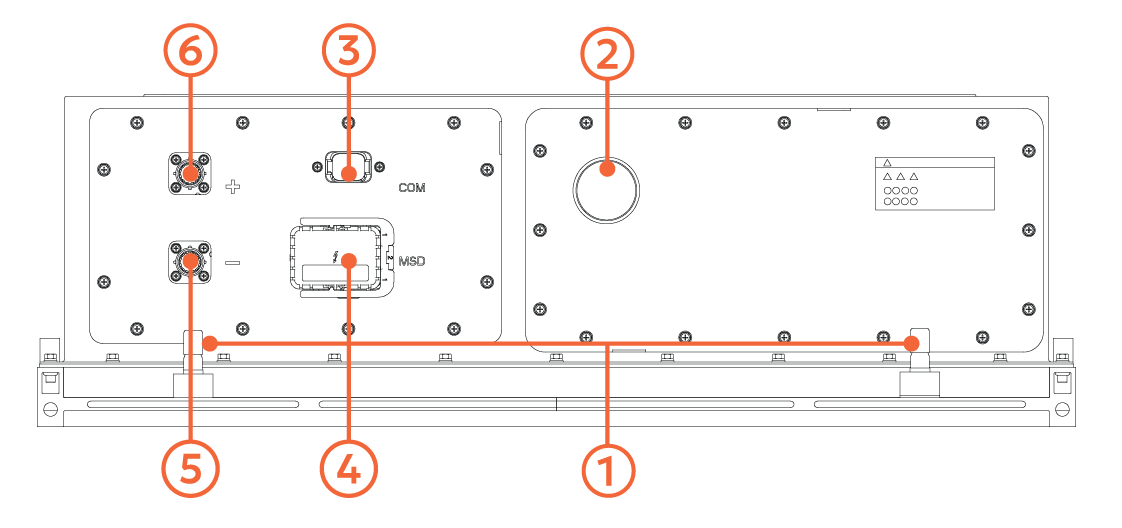

Battery Pack
|
No. |
Name |
Description |
|---|---|---|
|
1 |
Battery Pack Coolant Inlet/Outlet |
Connects the battery pack to the Thermal Management System, facilitating the flow of coolant for temperature regulation. |
|
2 |
Battery Pack Pressure Relief Valve |
If a thermal event occurs inside the battery pack, the valve indicator will pop forward and release the internal aerogel to suppress a thermal runaway event. |
|
3 |
Battery Pack Communication Harness |
This connects the battery pack to the High Voltage Control Box for communication and monitoring. |
|
4 |
Manual Service Disconnect (MSD) |
The MSD includes a 500 A fuse. Use the MSD to manually disconnect high-voltage circuits in the battery pack during transportation, installation, maintenance, or emergencies. |
|
5 |
B- |
Battery Pack Negative (-) Terminal, used for the negative connection of the battery pack. |
|
6 |
B+ |
Battery Pack Positive (+) Terminal, used for the positive connection of the battery pack. |
|
Not Shown |
Internal Fire Suppression |
The integrated pack-level fire suppression system is located behind the right access panel. |
