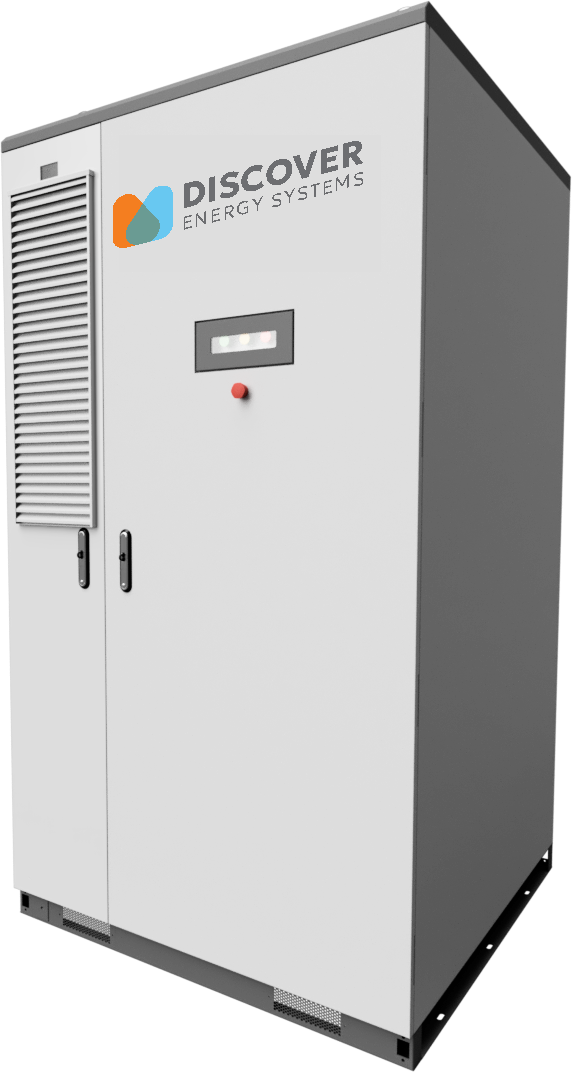

The AES OUTDOOR C&I ENERGY STORAGE CABINET (AES Cabinet) is a four-to-eight-pack battery cabinet. It is a liquid-cooled outdoor energy storage system designed for seamless integration with commercial and industrial power conversion systems (PCS). Key features include a multi-level BMS, advanced TMS, rugged enclosure, fire detection and suppression, explosion control, and thermal runaway mitigation.
Paralleling C&I PCS with AES Cabinets expands power and energy capacity for grid-connected and off-grid applications. The AES Cabinet is optimized for seamless integration with high-voltage hybrid battery inverters.
Guide for UL9540-Compliant Installations
|
Item |
Description |
||||||
|---|---|---|---|---|---|---|---|
|
Unit Model Number |
SLL03C2-D1P52S1R2-A01 |
SLL03C2-D1P52S1R3-A01 |
SLL03C2-D1P52S1R4-A01 |
SLL03C2-D1P52S1R5-A01 |
SLL03C2-D1P52S1R6-A01 |
SLL03C2-D1P52S1R7-A01 |
SLL03C2-D1P52S1R8-A01 |
|
Model |
CAB-106 |
CAB-160 |
CAB-210 |
CAB-266 |
CAB-318 |
CAB-372 |
CAB426 |
|
Usable Energy Capacity |
106 kWh |
160 kWh |
209 kWh |
261 kWh |
313 kWh |
366 kWh |
418 kWh |
|
Maximum capacity per unit |
104 kWh |
157 kWh |
212 kWh |
266 kWh |
318 kWh |
372 kWh |
426 kWh |
|
Number of battery packs per unit |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|
Minimum separation from other ESS (sides) |
No minimum |
||||||
|
Minimum separation from other ESS (front to back) |
900 mm (35.43 in) |
||||||
|
Minimum separation from other ESS (back to back) |
500 mm (19.68 in) |
||||||
|
Minimum separation from other ESS (front to front) |
2700 mm (106.3 in) |
||||||
|
Minimum separation from constructions and other structures |
900 mm (35.43 in) (non-combustible constructions only) |
||||||
|
Testing organization |
TÜV Rheinland (Shenzhen) Co., Ltd. |
||||||
|
Certificate No.: CU 72501104 0001 Report No.: CN25NDJI 001 Standards: ANSI/CAN/UL 9540:2023 |
||||||
|
Report No.: CN242R6S 001 Test Specification: ANSI/CAN/UL 9540A:2019 (Fourth Edition) |
||||||
|
Additional fire suppression is required |
No |
||||||
|
Additional explosion protection is required |
No |
||||||
|
Suitable for habitable spaces of dwellings? |
No |
||||||
|
Suitable locations |
Non-residential: Indoor floor-mounted or outdoor ground-mounted. |
||||||
|
Limited access requirements |
N/A |
||||||
|
Emergency Service Contact Information |
Infotrac: 1-800-535-5053 (Account # 115375) |
||||||
