Forklift

DROP HAZARD

Plan ahead to minimize travel distances and the time the forklift solely supports the cabinet.
When moving the battery cabinet by forklift, always transport the cabinet while it remains on its shipping pallet.
To safely lift the battery cabinet, use a forklift with a fork length of 1300 mm (52 in) or more and ample lifting capacity.
The tilt angle of the cabinet should not exceed 10° during movement.
Perform a test lift to ensure stability and correct fork positioning.
Move on flat surfaces only and keep the lift height as low as possible to avoid tipping.
Use spotters to guide the cabinet safely, keeping all personnel at a safe distance.
Lower the cabinet gently to prevent damage.

Failure to follow these instructions may result in injury.

NOTICE

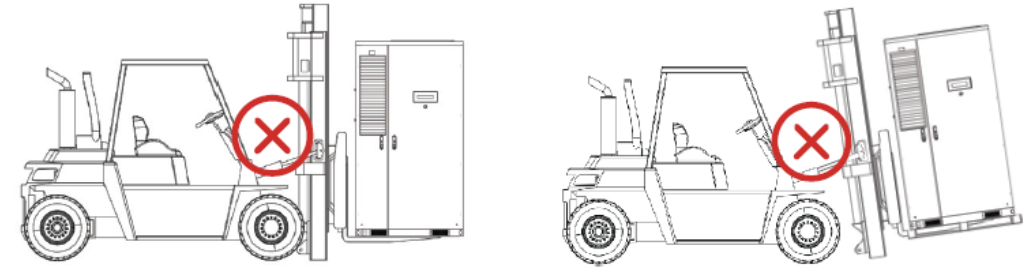

CABINET BASE DAMAGE

When being moved by a forklift, the AES Cabinet must remain on its shipping pallet. The cable raceways at the base of the cabinet are not designed to support forklift handling.

Failure to follow these instructions may result in equipment damage.

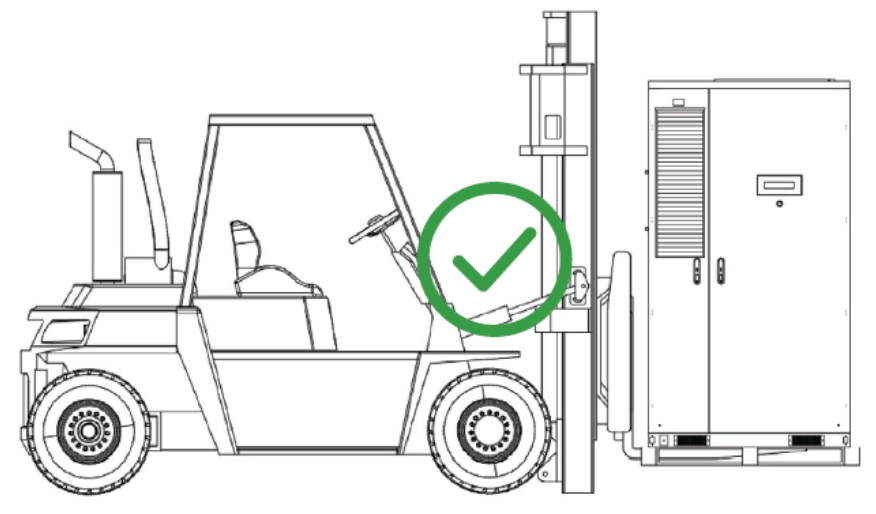

AES Cabinet Forklift Handling

Forklift Handling

The cabinet must remain on its shipping pallet for forklift transport.
The battery cabinet weighs approximately 2,500 to 3900 kg (5500 to 8600 lb). Use a heavy-duty forklift with forks at least 1,300 mm (52 in) in length, and ample capacity to lift the battery safely.
Keep the tilt angle below 10° and lift/lower smoothly to prevent shocks or sudden impacts.
