DC Cable and Wiring
Each Sol-Ark 60K-3P inverter supports up to 50 A of charge/discharge current for each of its two battery terminals, for a total charge/discharge current of 100 A for each inverter, which is the equivalent of 60 kW for a batteries with an output voltage of at least 600 Vdc.
In applications that use two Sol-Ark 60K-3P inverters connected to a single AES 210HV cabinet, the inverters’ DC input is limited by the cabinet’s continuous current rating of 160 A, which is split between the inverters to balance the power evenly.
Multi-Terminal Installation
Properly Rated Cables. Cables for high-voltage DC connections should be rated to at least 1 kV to provide a safety margin for the system’s maximum battery voltage of 750 Vdc.
Inverter Ports | Max. Terminal Rating | Terminal Wire Size Range |
Battery Port A | 50 Adc | 6 AWG - 4 AWG |
Battery Port B | 50 Adc | 6 AWG - 4 AWG |

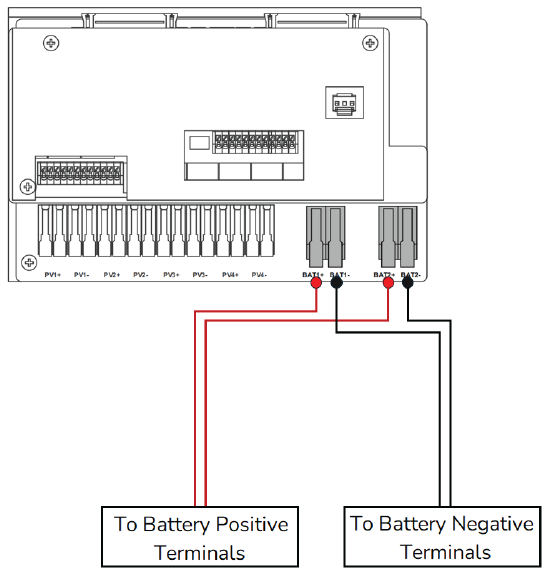

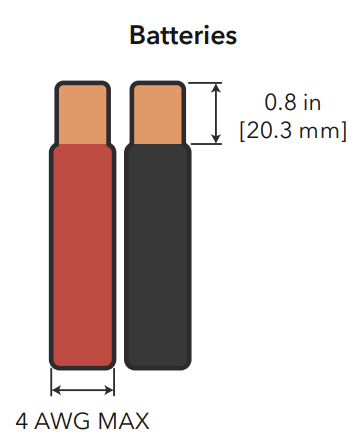

Battery Cables
NOTICE |
EQUIPMENT DAMAGE Confirm the polarity of all DC connections before powering on the system. Incorrect polarity can damage the equipment and void the warranty. Failure to follow these instructions may result in equipment damage. |
