Location and Mounting Considerations

Inverter Mounting. Follow the Sol-Ark inverter installation manual.

Cabinet Mounting. Follow the AES Cabinet Outdoor C&I Installation and Operation or the AES 210HV Installation and Operation Manual.

Separation Distance. The inverter and battery cabinet do not need to be adjacent. The inverter supports up to 4 AWG copper wiring, with a maximum continuous current of 50 A per pair of conductors. Ensure the distance between the inverter and cabinet contributes less than a 2.5% voltage drop.

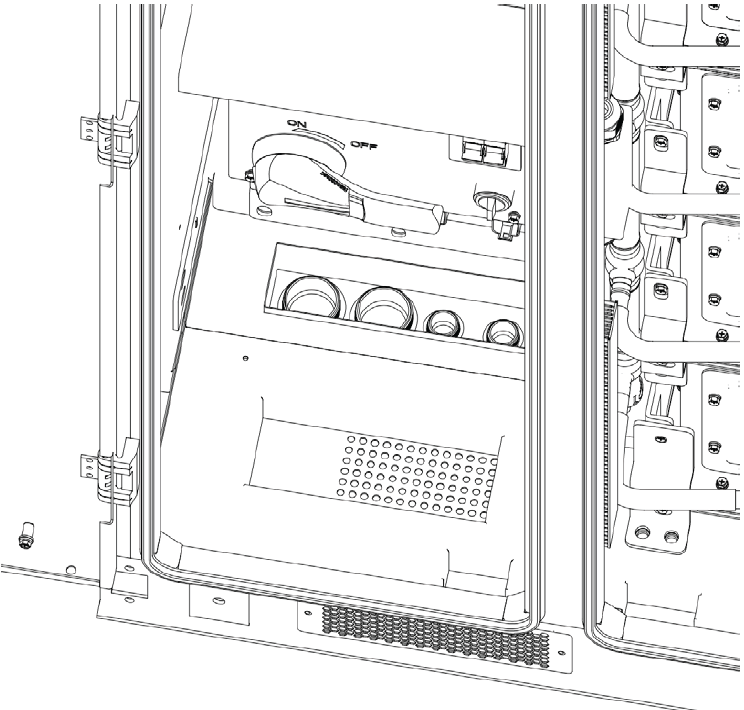

Conduit and Raceways. The AES Cabinet features a bottom-entry path for all wire connections to enter the battery cabinet. Cables route through underground conduits or the wire chase beneath the cabinet for a clean and organized installation.


You can also pass wiring through an entry on the bottom part of the left side wall of the cabinet.

NOTICE

CABINET DAMAGE / VOID WARRANTY

  • Follow the instructions in the AES Cabinet Outdoor C&I Installation and Operation Manual or the AES 210HV Installation and Commissioning Manual for the installation of wiring and conduit.

  • For permission to pass wiring and conduit through the sides of the AES Cabinet, please contact a Discover Energy team member for consultation and sign off on any alterations.

  • Damage resulting from unauthorized changes to the Cabinet will void the warranty.

Failure to follow these instructions may result in equipment damage.
