Clearance
Battery Cabinet Overhead Clearance
Cabinet Layout

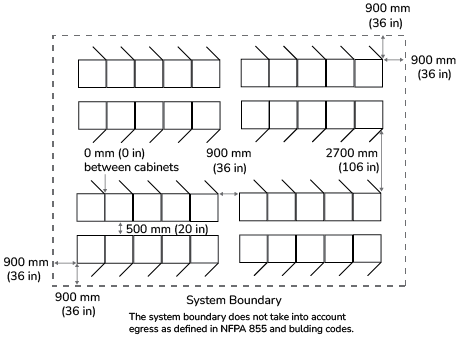

When installing multiple cabinets, the minimum:
front door to system boundary spacing is 900 mm (36 in)
back-to-back spacing is 500 mm (20 in)
side-by-side spacing between cabinets is 0 mm (0 in)
side to system boundary spacing is 900 mm (36 in).
The front door to front door spacing of 2700 mm (106 in) is the total of the work clearance for each cabinet and the egress pathway.
NOTE |
|---|
Clearance dimensions are published for airflow and service access. Consult with the local Authority-Having-Jurisdiction for accepted spacing and separation or other requirements applicable to the area of installation. |

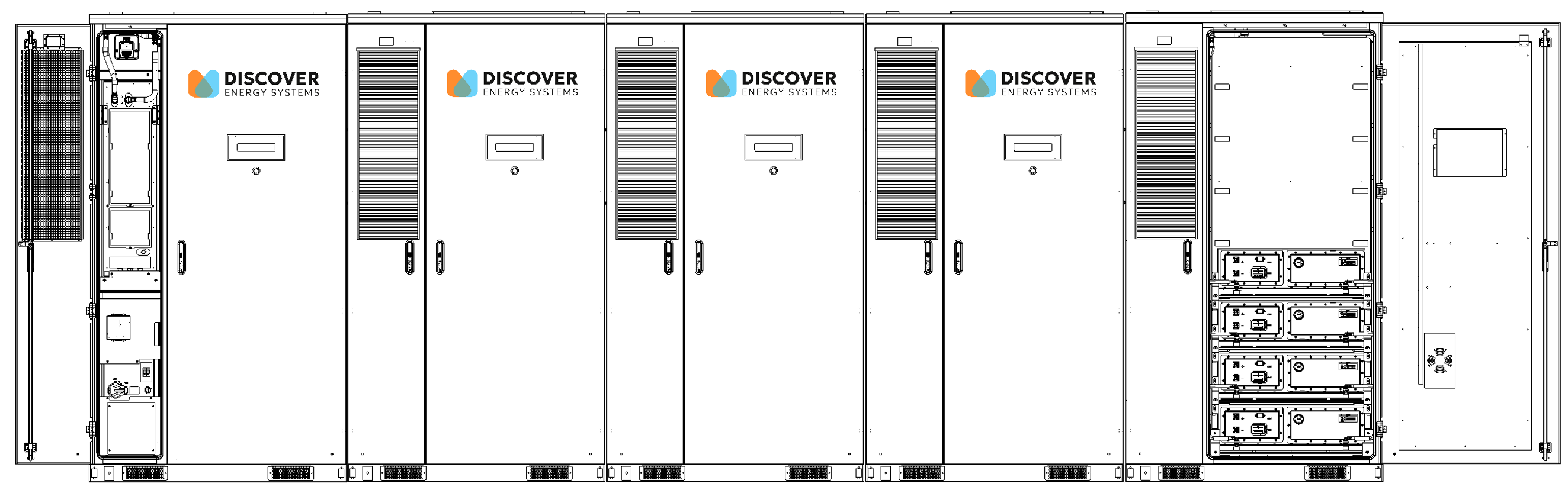

No minimum spacing between cabinets
NOTE |
|---|
The AES Battery Cabinets may be placed side by side as long as the front and back airflow and service access spacings are adhered to. Consult with the local Authority-Having-Jurisdiction for accepted spacing and separation or other requirements applicable to the area of installation. |
