Overhead Hoisting

TIPPING HAZARD

When lifting, ensure the load is evenly distributed across all lifting points to maintain a balanced vertical lift.
Move the unit slowly and carefully into the designated location, following standard safety protocols.
Do not use slings or straps without spreaders for overhead lifting.
Tilting of the unit is strictly prohibited.

Failure to follow these instructions may result in injury.

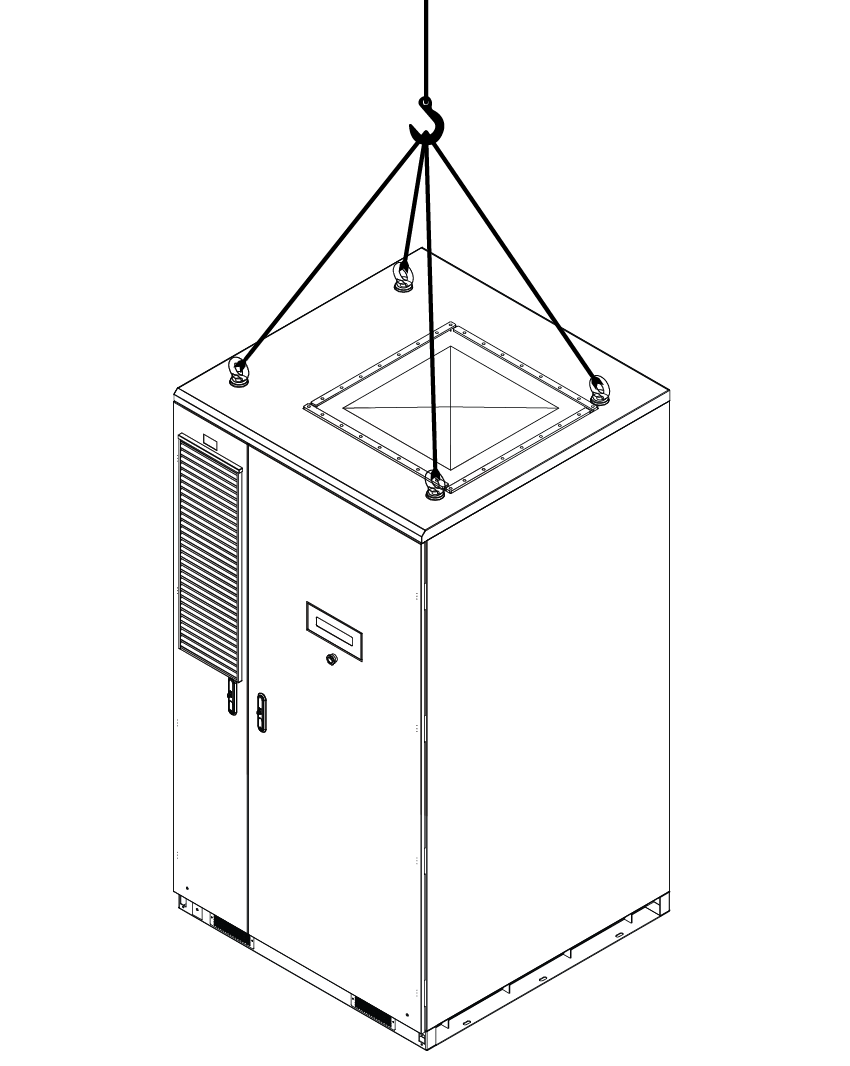

AES 210HV Overhead Hoisting

Lifting Preparation

Securely fasten all four lifting lugs into the designated holes at the top of the cabinet.
The lifting lug hole diameter is 51 mm (2 in).
The crane hook or lifting bar must be at least 900 mm (36 in) above the cabinet.

Hoisting Guidelines

Use all four lifting lugs for balanced lifting.
Ensure sling connections are secure and sling lengths are equal.
Keep the hoisting angle below 10° to maintain stability.
Conduct a low-height test lift to verify load stability.
Use lifting straps or chains rated for at least 3,000 kg (6,500 lb).
Spreader bars may be required to prevent straps from contacting the cabinet.
Keep the crane hook at least 1 meter above the cabinet for safe lifting.
Lock the cabinet door to prevent accidental opening.
Lift and lower slowly to avoid shocks or sudden impacts.

Safety Precautions

Keep all personnel at a safe distance during lifting and lowering.
Use spotters to guide the cabinet into position and ensure a clear working area.
