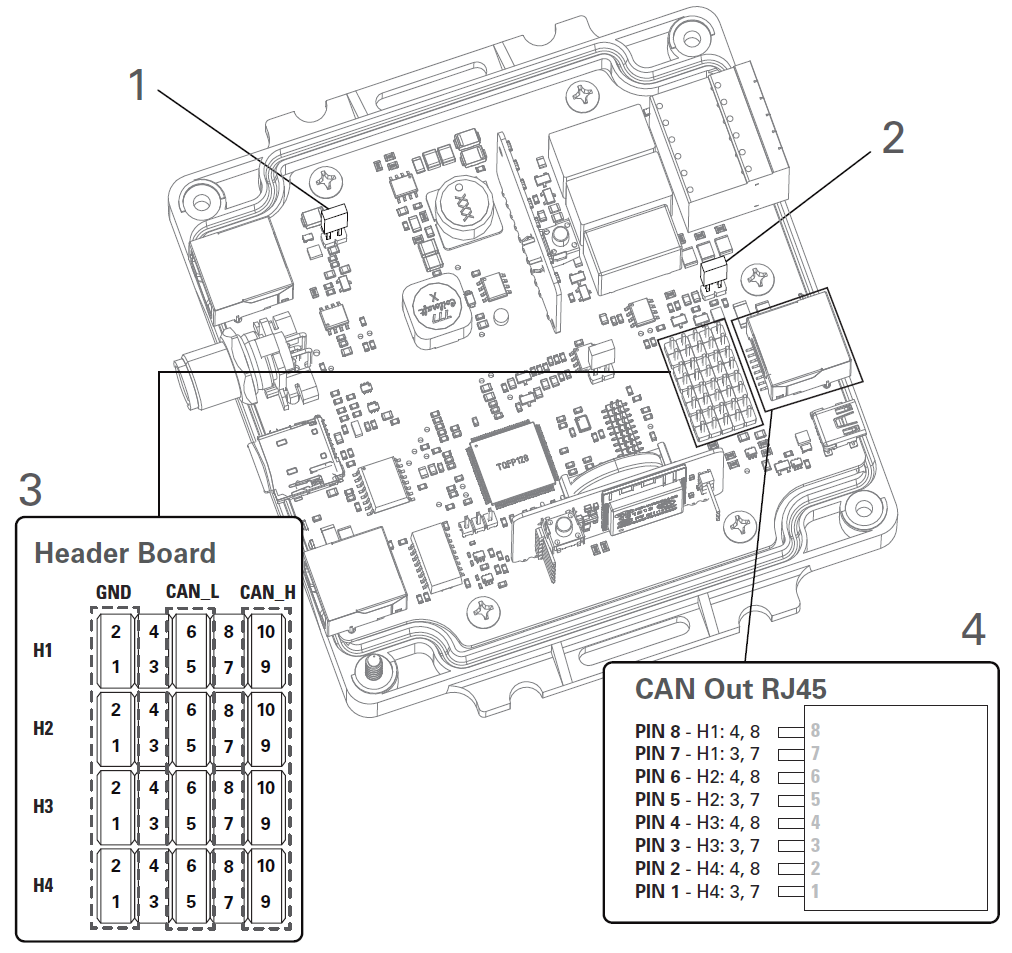

Jumpers are pre-positioned for the termination of the LYNK and CANbus networks. Jumpers can be repositioned on the header board for different CAN Out RJ45 pin assignments.
CAN Termination
|
1 |
LYNK Termination Header Board |
A termination jumper is installed by default. |
|
2 |
CAN Out Termination Header Board |
LYNK Termination Header Board |
|
3 |
CAN Out RJ45 Configuration Header Board |
Jumpers are used to customize the CAN GND, CAN L, and CAN H outputs on the RJ45 Port. |
|
4 |
CAN Out RJ45 Pin Configuration |
CAN Out RJ45 pins mapped to their Header Board positions. |
|
NOTE |
|---|
|
The LYNK network is terminated by default. Do not remove the LYNK termination jumper for LYNK II unless instructed to do so by Discover Energy Systems. |
