CONFIGURING LYNK CLOUD REMOTE MONITORING

The LYNK CLOUD platform enables you to monitor the performance of Discover batteries from remote locations. This platform is available to all Discover Lithium batteries that operate with the LYNK II Gateway and have access to the Internet.

The following instructions describe configuring the LYNK II to work with the LYNK CLOUD remote monitoring platform. For instructions on using the LYNK CLOUD platform, refer to the Setup Guide.

1. Enable IoT settings on LYNK ACCESS.

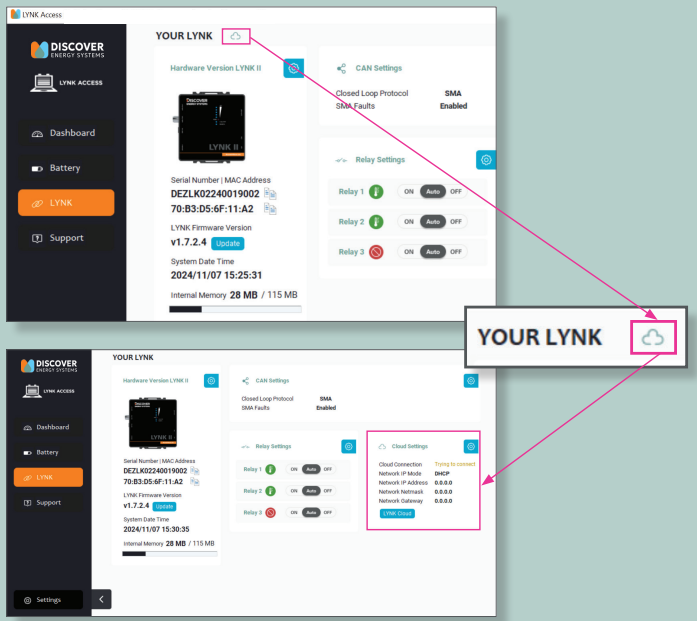

   1. Enable “IoT Communications” - If it is not visible, click on the cloud icon at the top of the application.

   2. A new cloud Settings tile should appear on the interface.

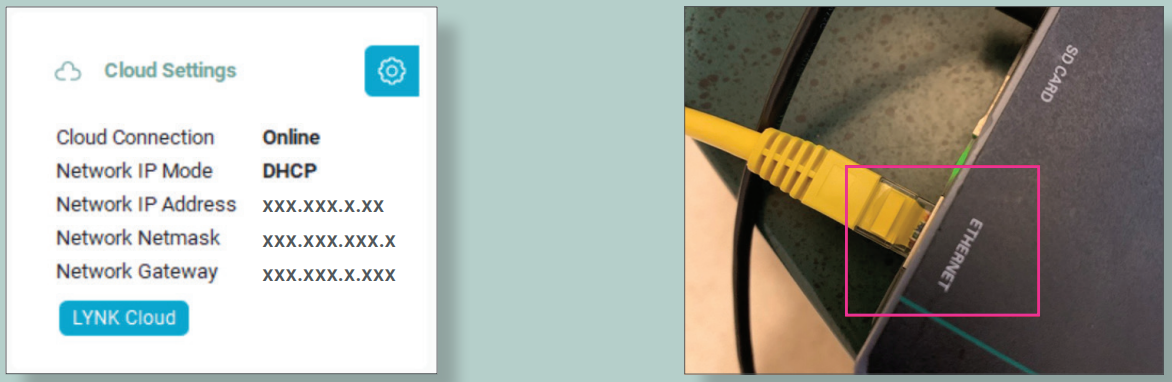

2. Configure your network settings. In most cases, users will leave it on DHCP in which the router will assign the LYNK an IP address. The LYNK II Gateway needs to be connected to the Internet for IoT to work.

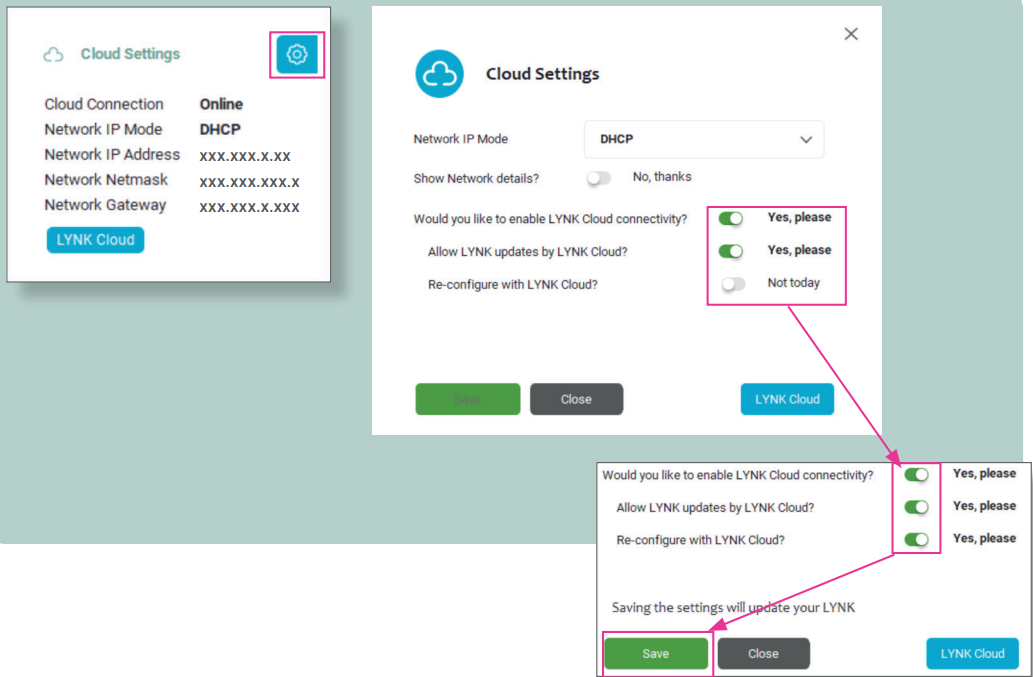

3. Click on the CLOUD Settings Gear icon

   1. Enable LYNK ACCESS to re-configure the LYNK II device with LYNK CLOUD.

   2. Click SAVE.
