Connecting to LYNK ACCESS

LYNK ACCESS software for 64-bit Windows 10 / 11 is required to configure LYNK II devices for CAN communication with compatible external devices such as inverters, chargers, and motor controllers.

  1. Download the current version of LYNK ACCESS software from the Discover Energy Systems website to obtain the most up-to-date suite of available device configurations.

  2. Connect the 64-bit Windows 10 / 11 device running LYNK ACCESS software to the USB port on LYNK II using a USB cable with a Type-B mini plug.

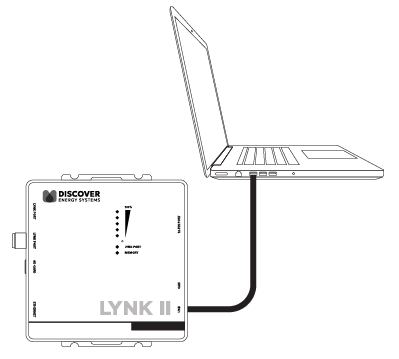

LYNK II USB mini Type-B Connection

NOTE

A powered USB hub may be required as a source of power to operate LYNK II.

  1. Start the LYNK ACCESS software program. LYNK II configurations and settings are found by selecting the LYNK tab.

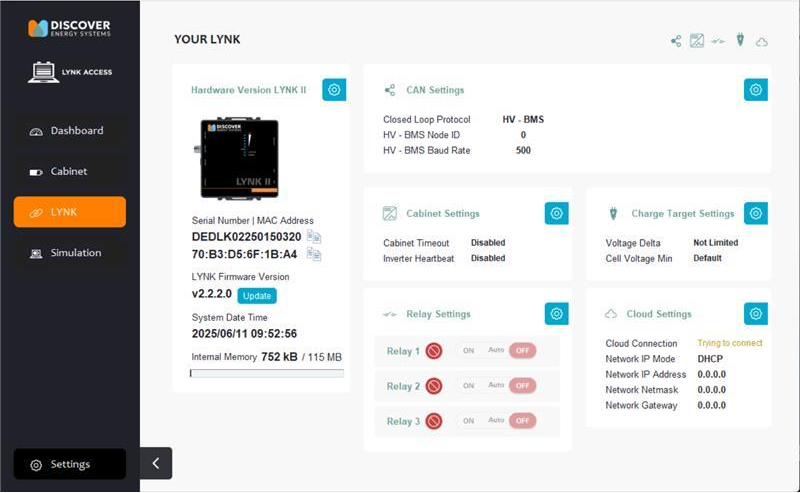

LYNK II configuration and settings screen for Low Voltage Batteries

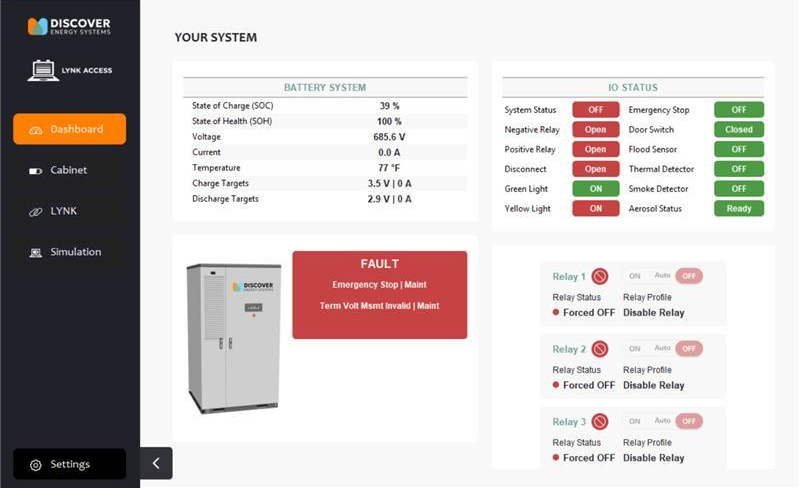

LYNK II configuration and settings screen for AES Cabinet
