Common pin assignments

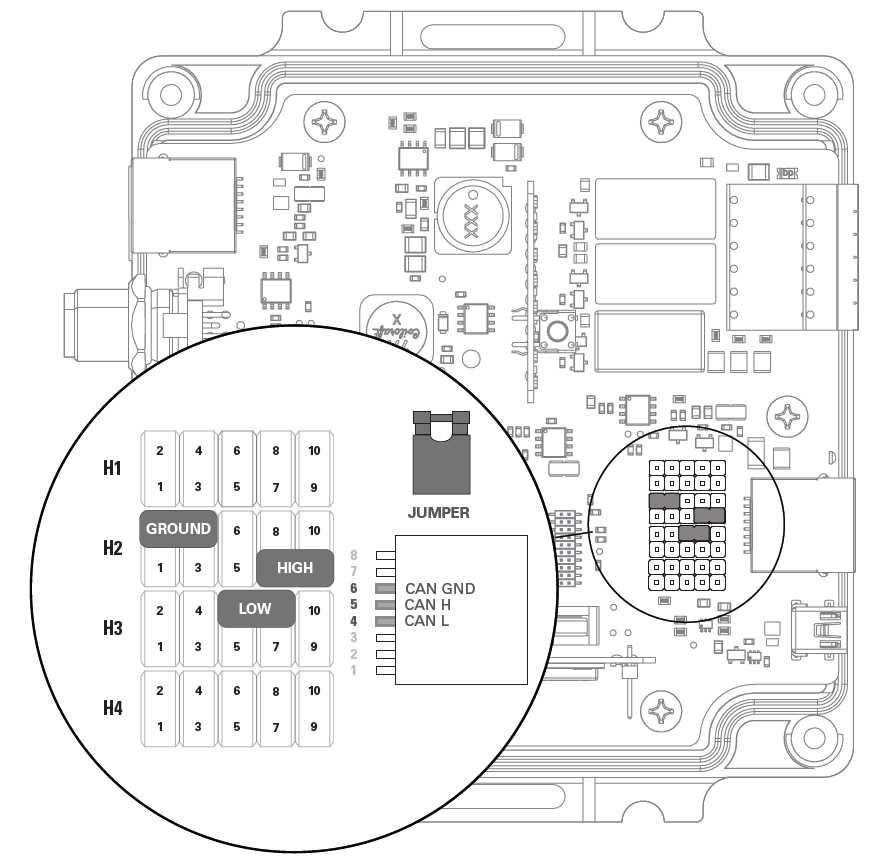

Sol-Ark: 5K-P / 8K-P / 12K-P / 15K-P (Outdoor)

CAN Out	Header Jumper	RJ45 Pin
CAN L	H2 - 5-7	5
CAN H	H3 - 8-10	4
CAN GND	H2 - 2-4	6

Sol-Ark Outdoor pin assignments

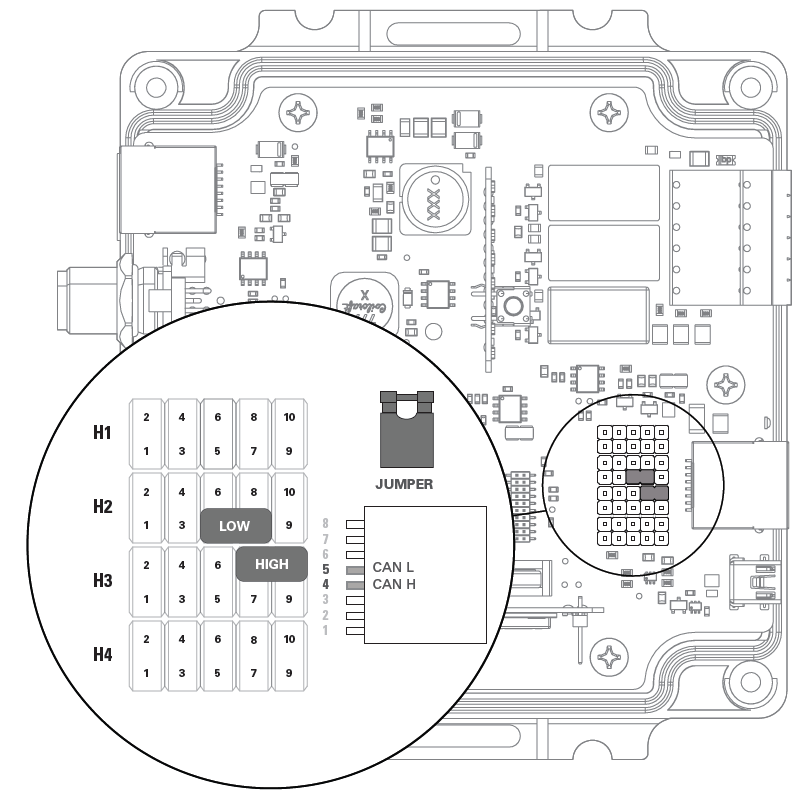

Deye: SUN 3-16K single-phase, 5-12K three-phase Hybrid Inverters

Luxpower: LXP-LB-US 8/10/12K Hybrid, SNA-US 6000 ECO Hybrid Inverters

NOARK: 3K - 8K single-phase and 5K - 12K three-phase low-voltage Hybrid Inverters

SAJ: H2 Series (H2-5K-LS3-US, H2-7.6K-LS3-US, H2-9.6K-LS4-US, H2-11.4K-LS4-US)

SUNSYNK: 3K - 16K single-phase and 8K - 12K three-phase low-voltage Hybrid Inverters

CAN Out	Header Jumper	RJ45 Pin
CAN L	H2 - 5-7	5
CAN H	H3 - 8-10	4
CAN GND	N/A	N/A

Deye, Luxpower, NOARK, SAJ, and SUNSYNK pin assignments

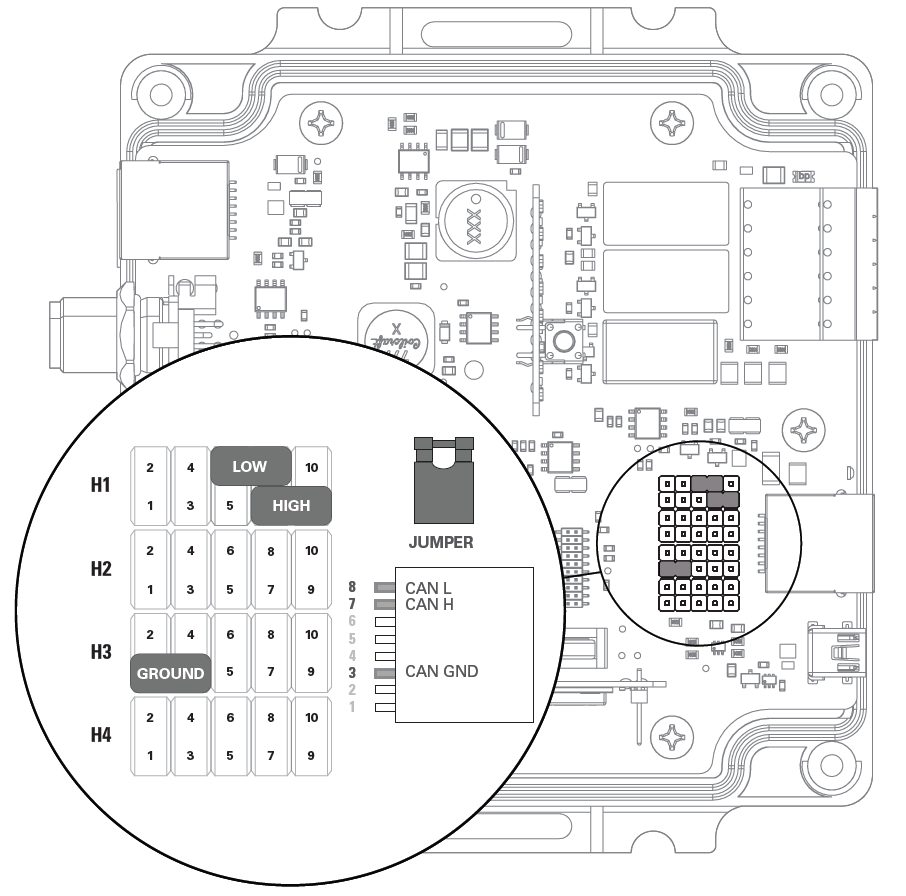

Victron Energy: Color Control GX, Venus GX, VE.CAN Devices
Studer Innotec: Xcom-CAN Devices

CAN Out	Header Jumper	RJ45 Pin
CAN L	H1 - 6-8	8
CAN H	H1 - 7-9	7
CAN GND	H3 - 1-3	3

Victron Energy and Studer Innotec pin assignments

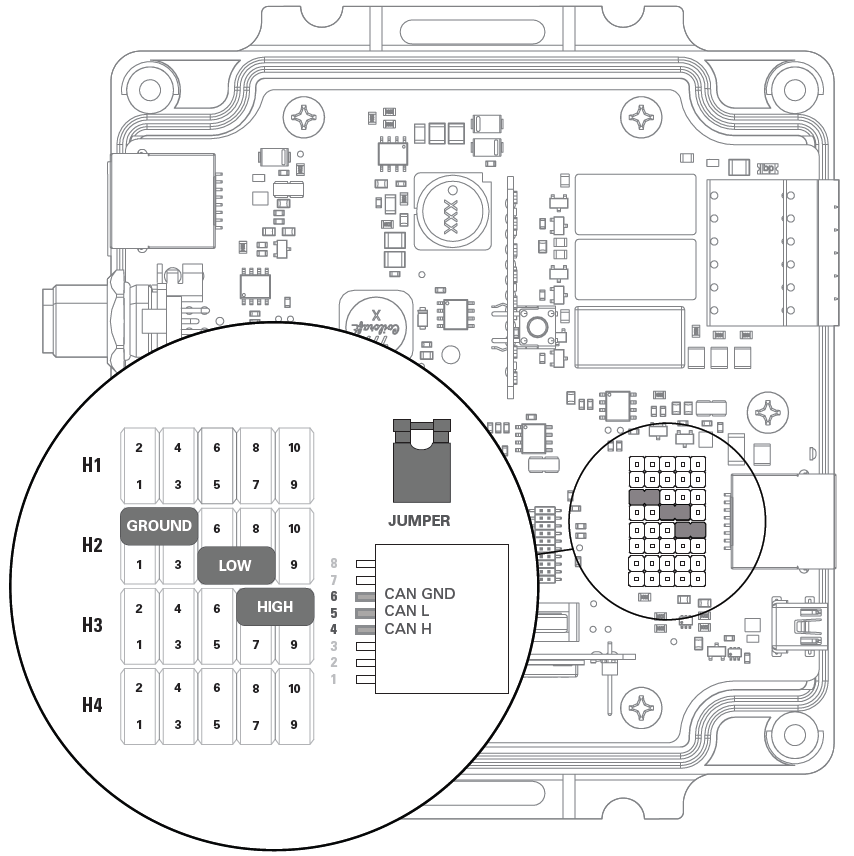

Schneider Electric: Xanbus Devices

CAN Out	Header Jumper	RJ45 Pin
CAN L	H3 - 6-8	4
CAN H	H2 - 7-9	5
CAN GND	H2 - 2-4	6

Schneider Electric Xanbus pin assignments

HAZARD OF EQUIPMENT DAMAGE

Pins 1, 2, and 7 are used by the Xanbus network to supply power to Xanbus-enabled devices on the network. Connect cables from the Xanbus port only with other Xanbus ports. Do not connect Xanbus to a LAN, CAN, or other type of port.

Failure to follow these instructions may result in equipment damage.

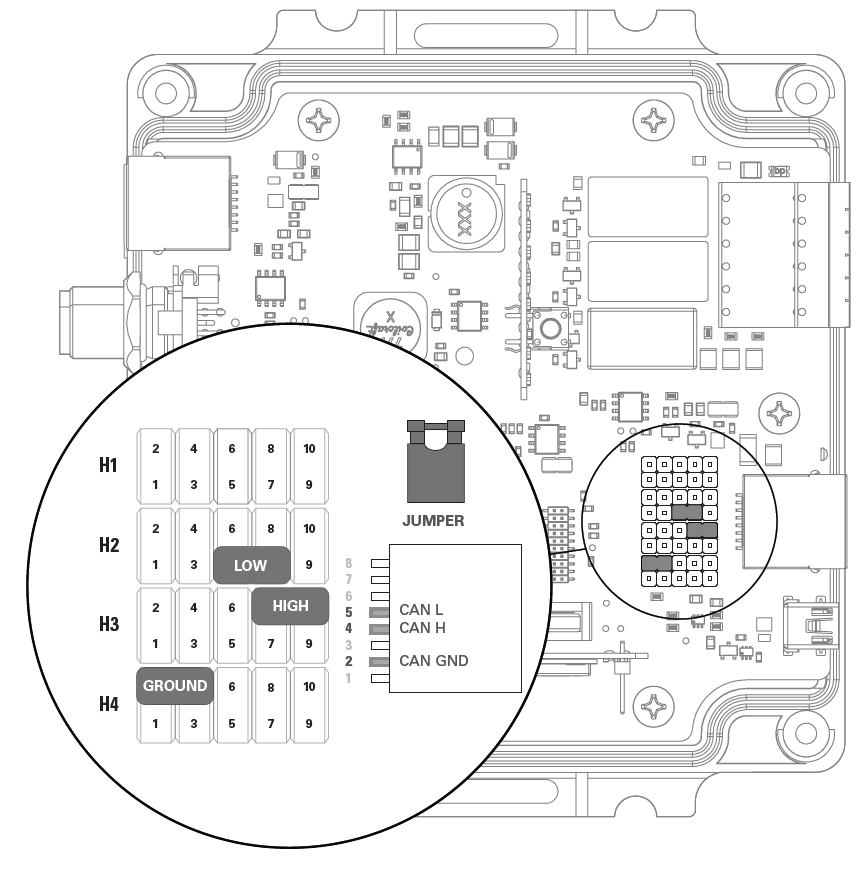

SMA: Sunny Island 4.4M, 6.0H, 8.0H, 4548-US, 6048-US

Sol-Ark: 8K Hybrid Indoor (Legacy), 12K Hybrid Indoor (Legacy)

Morningstar: GenStar MPPT Controller

CAN Out	Header Jumper	RJ45 Pin
CAN L	H2 - 5-7	5
CAN H	H3 - 8-10	4
CAN GND	H4 - 2-4	2

SMA, Sol-Ark (legacy), and Morningstar pin assignments

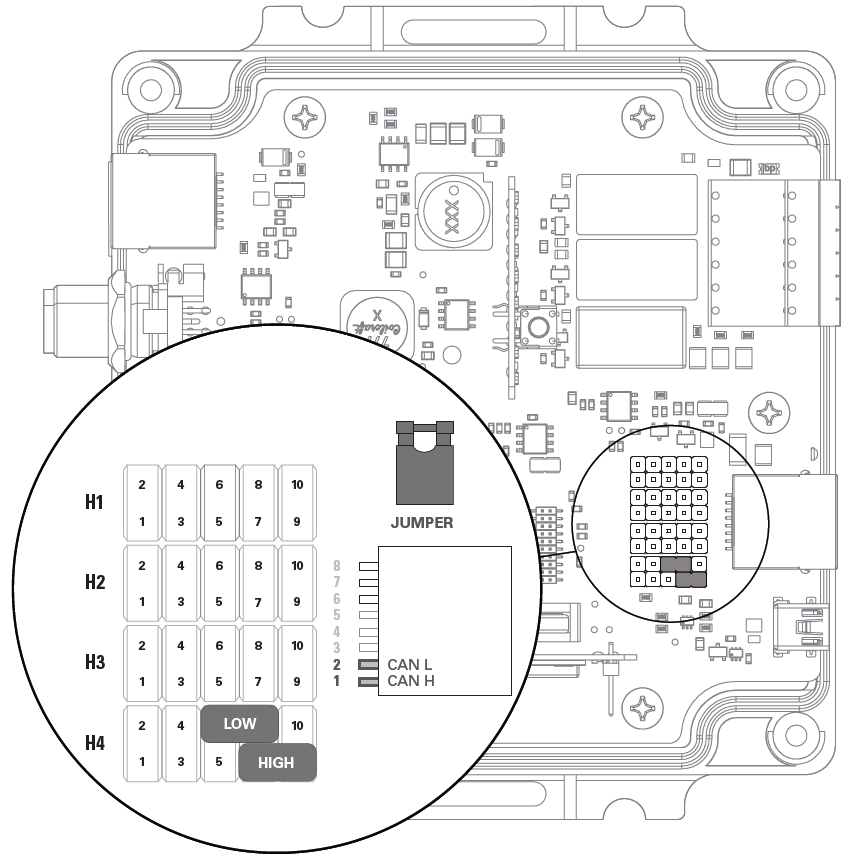

Selectronic: SPMC480-AU, SPMC481-AU, and SPMC482-AU inverter-chargers

CAN Out	Header Jumper	RJ45 Pin
CAN L	H4 - 6-8	2
CAN H	H4 - 7-9	1
CAN GND	N/A	N/A

Selectronic pin assignments
