CAN Termination
Jumpers are pre-positioned for the termination of the LYNK and CANbus networks. Jumpers can be repositioned on the header board for different CAN Out RJ45 pin assignments.

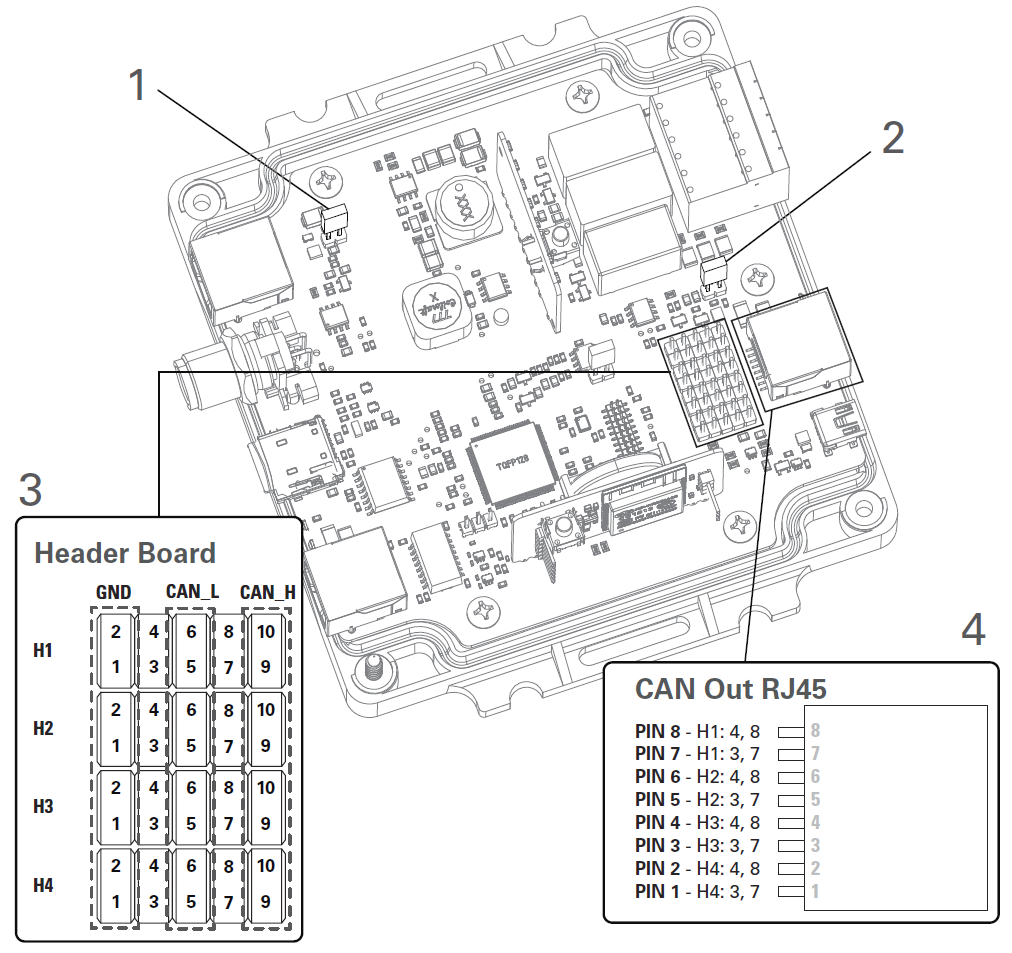

CAN Termination
1 | LYNK Termination Header Board | A termination jumper is installed by default. |
2 | CAN Out Termination Header Board | LYNK Termination Header Board |
3 | CAN Out RJ45 Configuration Header Board | Jumpers are used to customize the CAN GND, CAN L, and CAN H outputs on the RJ45 Port. |
4 | CAN Out RJ45 Pin Configuration | CAN Out RJ45 pins mapped to their Header Board positions. |
NOTE |
|---|
The LYNK network is terminated by default. Do not remove the LYNK termination jumper for LYNK II unless instructed to do so by Discover Energy Systems. |
