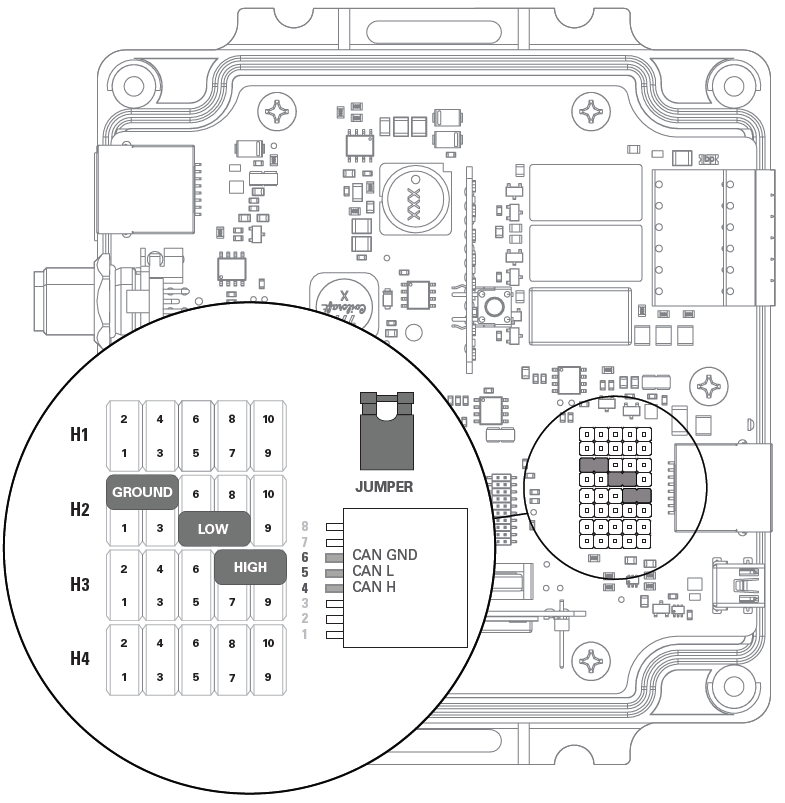

Default pin assignments
CAN Out | Header Jumper | RJ45 Pin |
|---|---|---|
CAN L | H2 - 5-7 | 5 |
CAN H | H3 - 8-10 | 4 |
CAN GND | H2 - 2-4 | 6 |
Default pin assignments

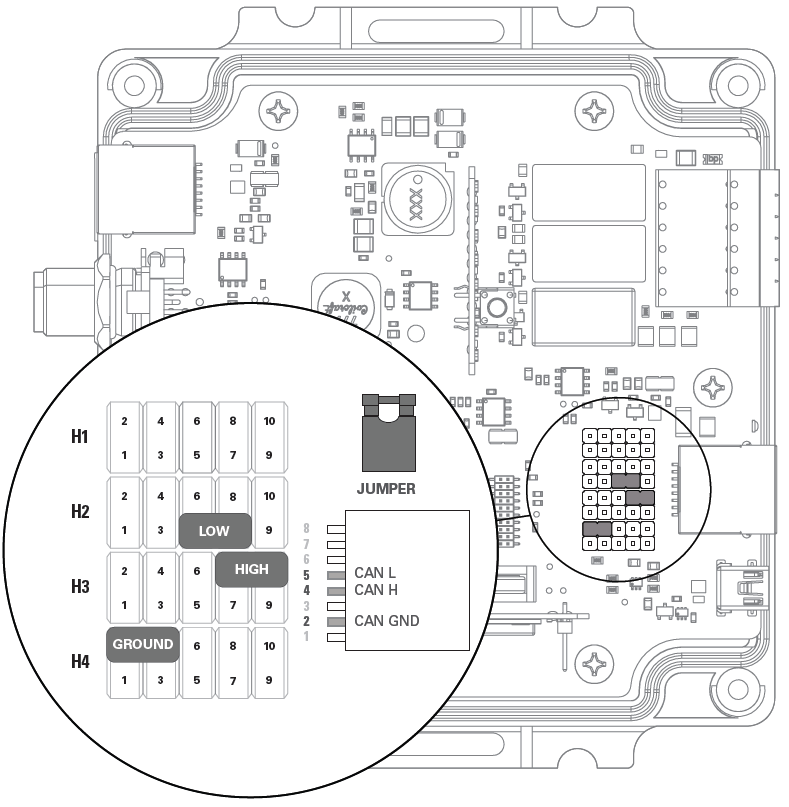

Previous default pin assignments (less than serial number DEzLKaa240010000)
CAN Out | Header Jumper | RJ45 Pin |
|---|---|---|
CAN L | H2 - 5-7 | 5 |
CAN H | H3 - 8-10 | 4 |
CAN GND | H4 - 2-4 | 2 |
Previous default pin assignments
