LYNK II CAN Out - RJ45 PIN Assignments for Solis Inverters

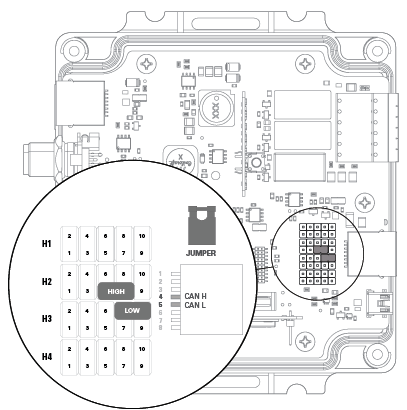

CAN signals (CAN H, CAN L, CAN GND) can be assigned to any pin of the RJ45 connector by adjusting the jumpers on the header board.


Solis CAN Pin Assignment

CAN Out

Header Jumper

RJ45 Pin

CAN L

H2 - 5 - 7

5

CAN H

H3 - 8 - 10

4

CAN GND

N/A

N/A
