Location and Mounting Considerations

Inverter Mounting. Follow the Solis inverter installation manual.

Cabinet Mounting. Follow the AES Cabinet Outdoor C&I Installation and Operation or the AES 210HV Installation and Operation Manual.

Separation Distance. The inverter and battery cabinet do not need to be adjacent. The inverter supports up to 4 AWG copper wiring, with a maximum continuous current of less than 80 A (30-50K models) or 84 A (60K model) per pair of conductors. Ensure the distance between the inverter and cabinet contributes less than a 2.5% voltage drop.

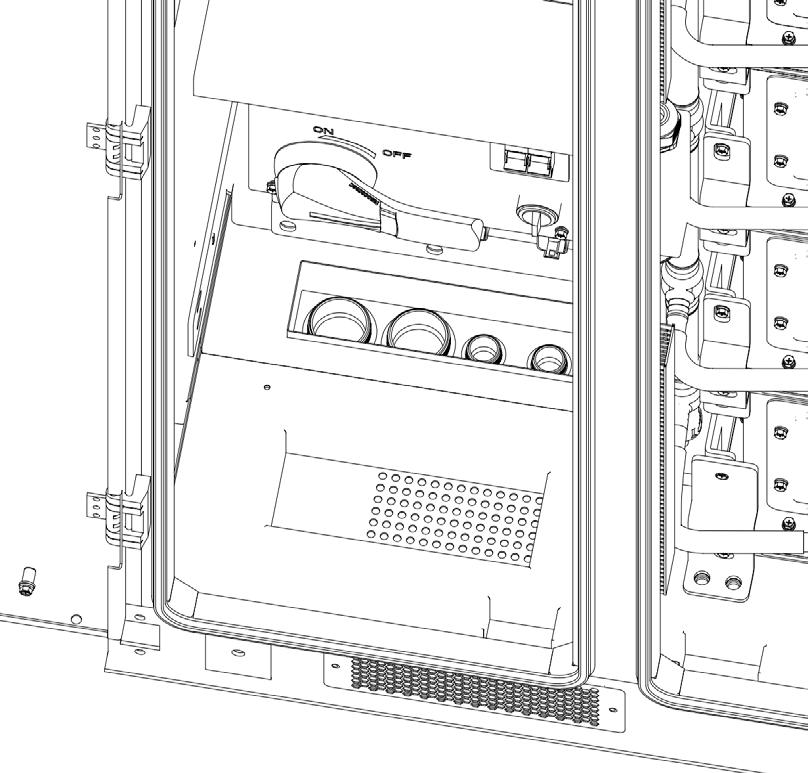

Conduit and Raceways. The AES Cabinet features a bottom-entry path for all wire connections to enter the battery cabinet. Cables route through underground conduits or the wire chase beneath the cabinet for a clean and organized installation.

You can also pass wiring through an entry on the bottom part of the left side wall of the cabinet.

NOTICE

CABINET DAMAGE / VOID WARRANTY

Follow the instructions in the AES Cabinet Outdoor C&I Installation and Operation Manual or the AES 210HV Installation and Commissioning Manual for the installation of wiring and conduit.
For permission to pass wiring and conduit through the sides of the AES Cabinet, please contact a Discover Energy team member for consultation and sign off on any alterations.
Damage resulting from unauthorized changes to the Cabinet will void the warranty.

Failure to follow these instructions may result in equipment damage.
