SYSTEM OVERVIEW AND DESIGN

The AES 210HV Energy Storage Cabinet integrates with the Solis S6-EH3P inverter to deliver a scalable, high-performance energy storage solution for demanding applications. The integration leverages advanced battery management, efficient DC distribution, and real-time communication to optimize system operation.

Voltage Compatibility

The AES 210HV operates at a nominal voltage of 665 Vdc, aligning with the Solis S6-EH3P inverter’s DC battery range (150–800 Vdc). This compatibility supports efficient power delivery with minimal conversion loss.

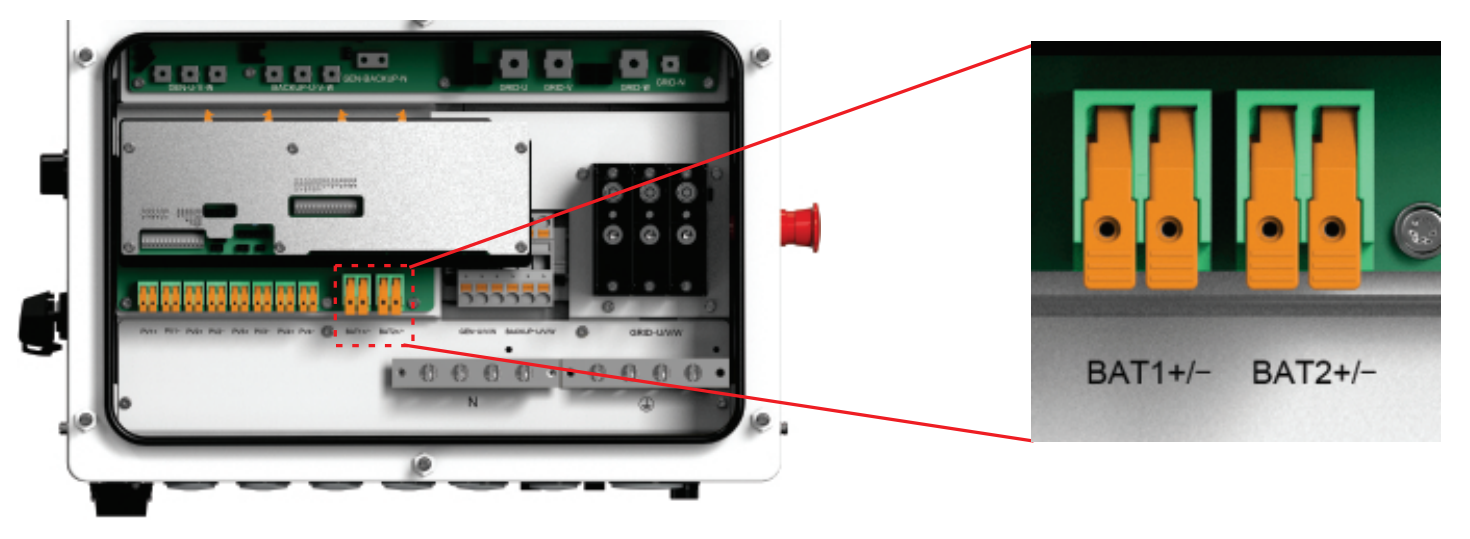

Dual Battery Terminals

The Solis S6-EH3P inverter features two independent battery input terminals, each rated for 70 Adc (33 kW) (for a combined maximum of 66 kW). The AES 210HV connects to both terminals through its Integrated DC Distribution.

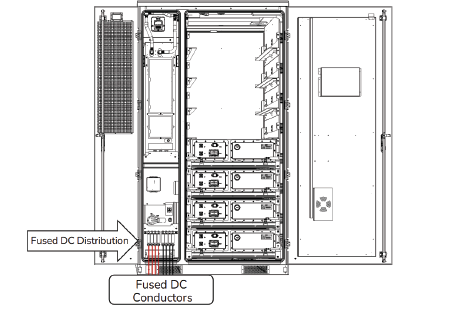

Integrated DC Distribution

The AES 210HV includes DC distribution with built-in fuses for a streamlined connection.

• Four positive and four negative fused connections, including 70 A fuses per terminal (replaceable with fuses from 35 A, 40 A, 50 A, 60 A, 70 A, 80 A, 90 A, 100 A, 125 A, 150 A).

• Use 4 AWG cables to meet Solis S6-EH3P wiring requirements.

• This configuration allows the AES 210HV to distribute power to multiple DC inputs and/or inverters.
