Common pin assignments
Default Pin Assignment
CAN Out | Header Jumper | RJ45 Pin |
|---|---|---|
CAN L | H2 - 5-7 | 5 |
CAN H | H3 - 8-10 | 4 |
CAN GND | H2 - 2-4 | 6 |

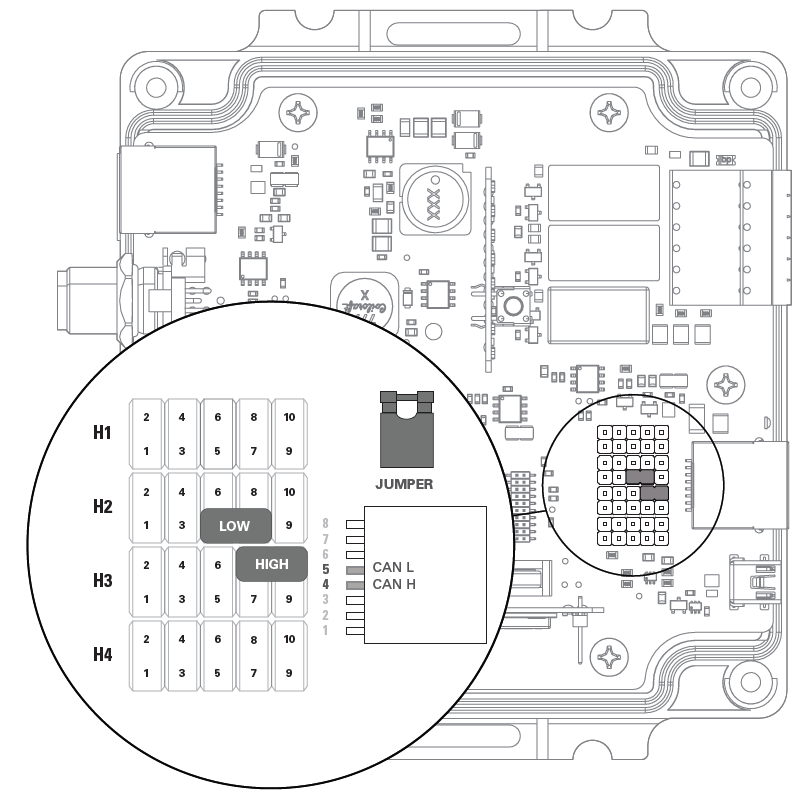

Default pin assignment
Pin Assignments for each Power Conversion Device
Sol-Ark: 60K-3P Hybrid Inverters (Outdoor)
CAN Out | Header Jumper | RJ45 Pin |
|---|---|---|
CAN L | H2 - 5-7 | 5 |
CAN H | H3 - 8-10 | 4 |
CAN GND | H2 - 2-4 | 6 |

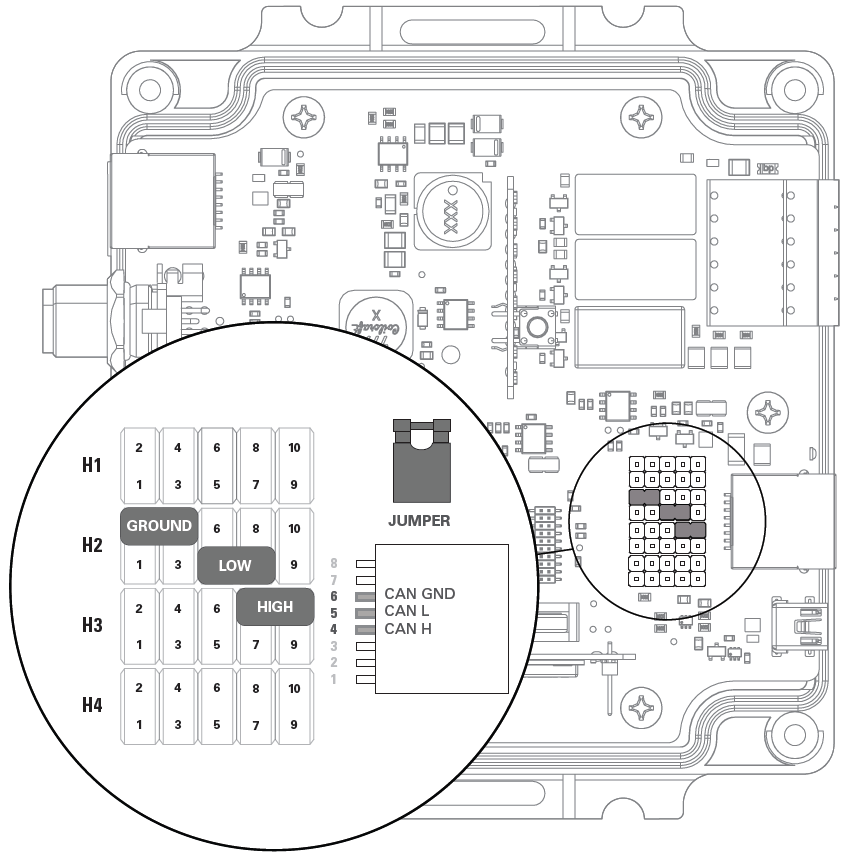

Sol-Ark Outdoor pin assignments
Solis: Solis S6-EH3P Inverters
CAN Out | Header Jumper | RJ45 Pin |
|---|---|---|
CAN L | H2 - 5-7 | 5 |
CAN H | H3 - 8-10 | 4 |
CAN GND | N/A | N/A |

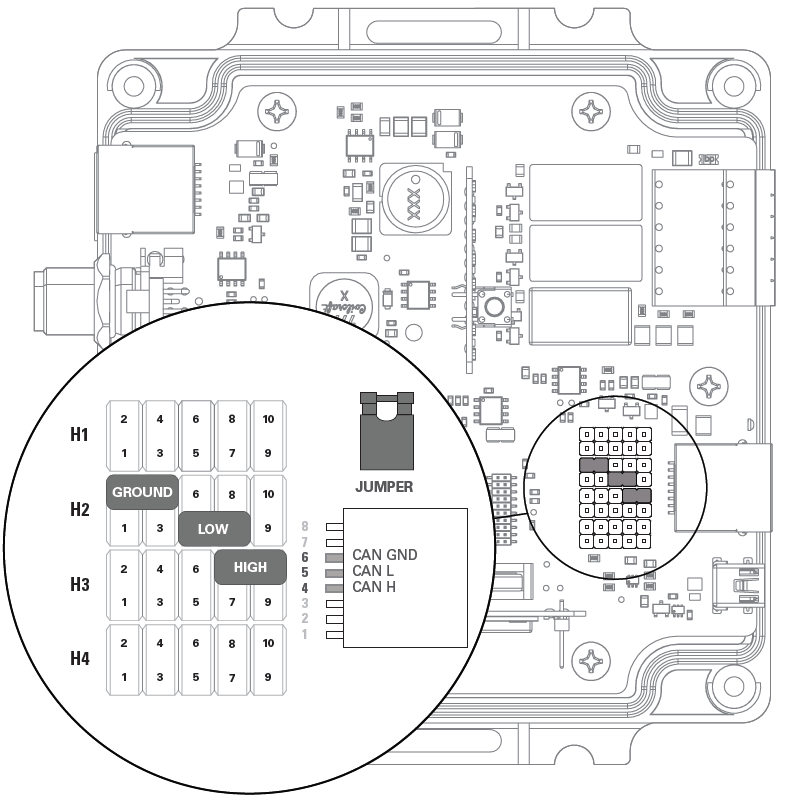

Solis pin assignments
