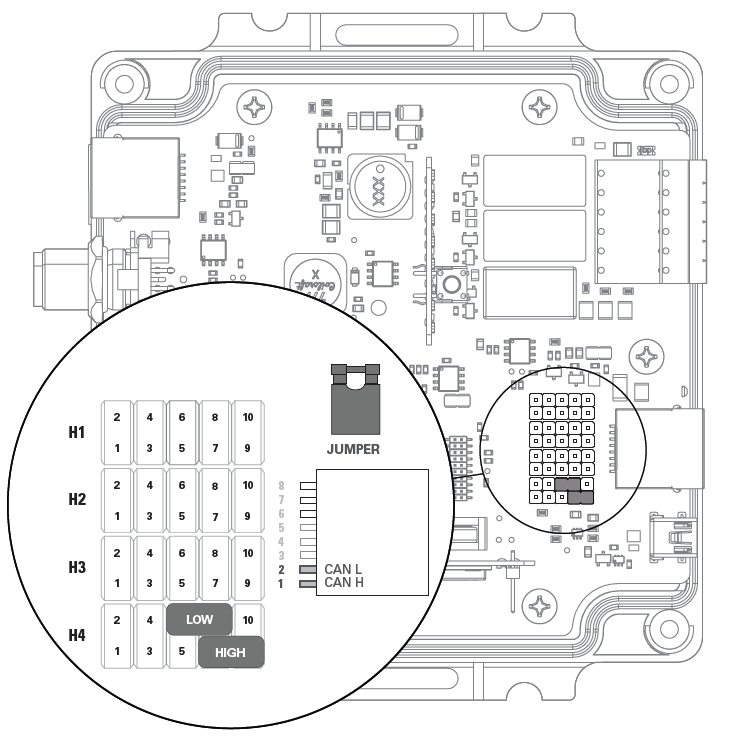

CAN signals (CAN H, CAN L, CAN GND) can be assigned to any pin of the RJ45 connector on the LYNK II by adjusting the jumpers on the header board.
|
CAN Out |
Header Jumper |
RJ45 Pin |
|---|---|---|
|
CAN L |
H4 - 6 - 8 |
2 |
|
CAN H |
H4 - 7 - 9 |
1 |
|
CAN GND |
N/A |
N/A |
|
NOTE |
|---|
|
LYNK II terminates the AEbus and LYNK Network by default. Do not remove the termination jumper inside LYNK II unless instructed to do so by Discover Energy Systems. |
