Simple Load Control Example (SOC Trigger)
Allow specified loads to operate without over-discharging the battery.
Activated: 5 seconds after the battery SOC increases above 60%
Deactivated: 5 seconds after the battery SOC drops below 25%

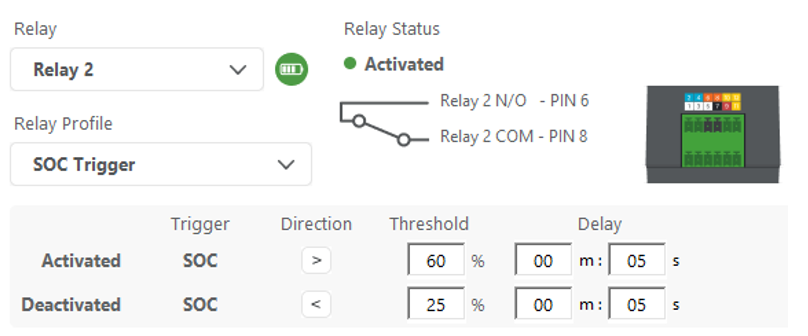

 LYNK ACCESS
|
|

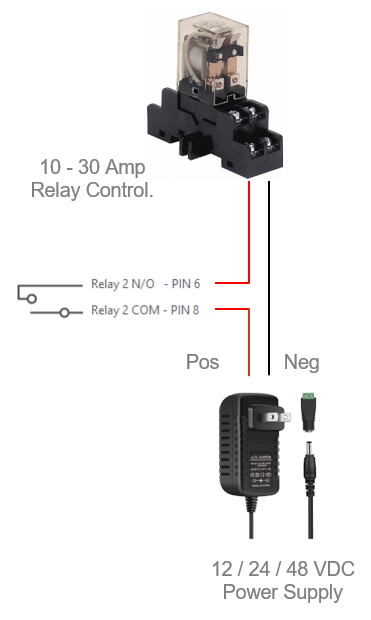

When the battery SOC rises above 60% SOC, after 5 seconds, the Normally Open switch (pin 6) on Relay 2 is closed (activated) and allows power to flow to the relay control and power the load. When the battery drops below 25% SOC, after 5 seconds, the switch (pin 6) is opened (deactivated) and cuts the power flow.
